Motion Raceworks

32-100SBC

SBC Catch Can Kit For 1.22" Push In Grommets 32-100SBC

Motion Raceworks - 32-100SBC

Racing Use Only, Not Legal for Road Use

$389.99

Starting at $37 /mo with

more than 10 items left

View full details

SBC Catch Can Kit For 1.22" Push In Grommets 32-100SBC

This kit is designed to be a complete solution for your SBC with grommet style valve covers that would normally use a Mr. Gasket Part #2054 or similar.

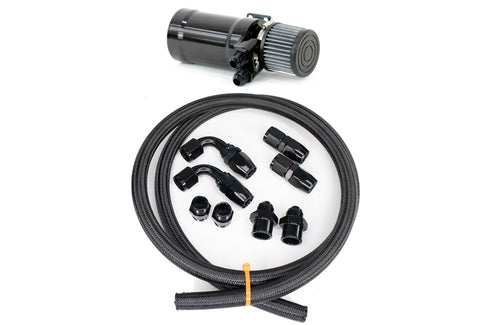

This Kit contains the following items:

  • (1) Billet Dual Port Catch Can
  • (2) 10 O-ring to 10 AN Adapter Fittings to screw into can
  • (2) Straight 10 AN Hose Ends (Fragola)
  • (2) 90° 10 AN Hose Ends (Fragola)
  • (2) SBC 10AN Valve Cover Adapter Fittings for Push-In Grommet (P/N 34-00031)
  • (6) Feet of 10 AN Black Braided Nylon Hose (Fragola)

Note: Grommets not included.

These SBC Grommet aluminum fittings are designed to firmly push in to your valve cover grommets and adapt to 10AN. This allows for easy adapting to a standard AN style line for a cleaner and more aesthetic way of plumbing / routing to a catch can or other PCV device. These Fittings are made to replace Mr. Gasket Part # 2054 or similar. Made to work with a 1.22" diameter hole in a valve cover.

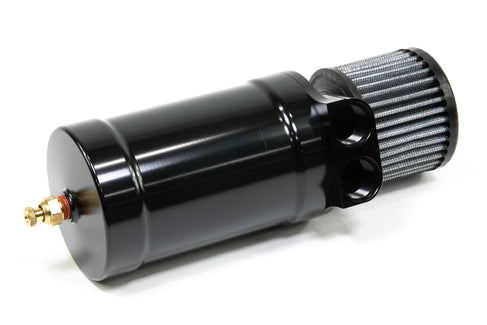

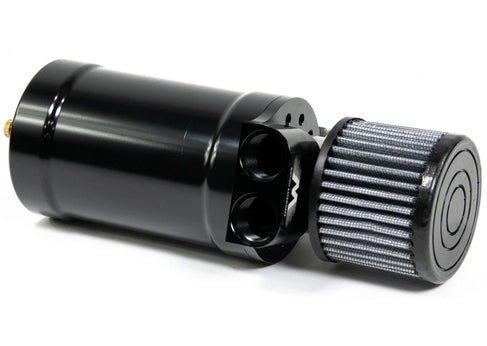

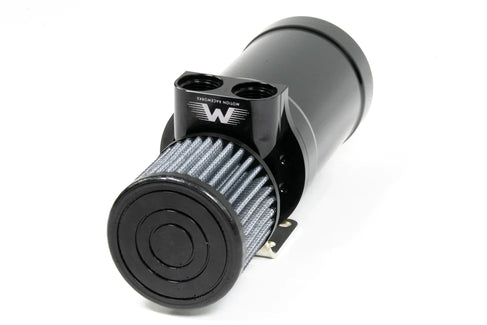

Top Loader Catch Can

This catch can is the results of years of building, refining, and optimizing N/A and Boosted combos. Featuring a dual internal baffling design, this can not only flows a high amount of air but keeps the filter and your engine bay dry from oil saturation due to poor can design.

One of the shortcomings of a typical can (including our own) is having fittings on opposing sides, and/or having the fittings clocked incorrectly.  This has been solved by having fittings coming out at 90°'s from the top of the can with a 180° clockable can by using our multiple bolt hole configuration top lid.  This means you can mount the can virtually anywhere in the engine bay and still have the fittings pointing in the correct orientation.

All cans come bright black anodized for a beautiful and durable finish.

Features include:

  • 100% Made in the USA
  • Billet Top/Bottom Hat and Barrel Design
  • 180° clockable mounting
  • Included zinc coated steel mount w/ hardware
  • Dual baffle internal design
  • High Flow Made in the USA Filter

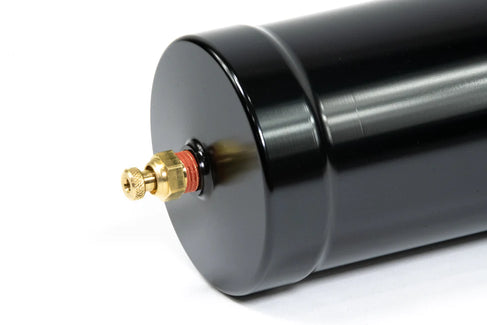

  • Comes with bottom plug and pet cock options
  • Dual -10 O-ring ( ORB ) outlets

Note: Due to design this will not facilitate dual -12AN hose ends connecting to can.  We suggest any connections needing -12 run two individual cans due to demand of flow of entire system.

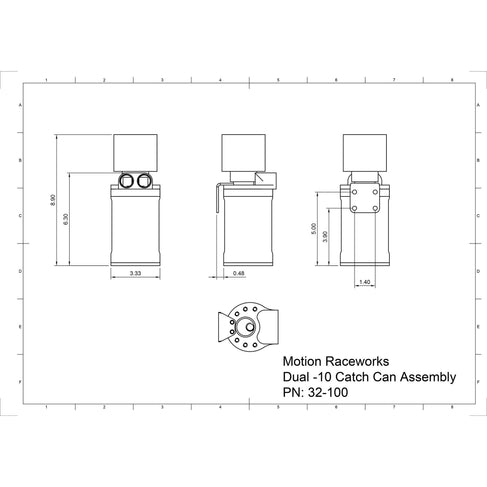

Reference Sizing Chart for Catch Can: Please note that catch can is "clockable" in mounting.

For more info on our Billet Top Loader Catch Can watch this video
