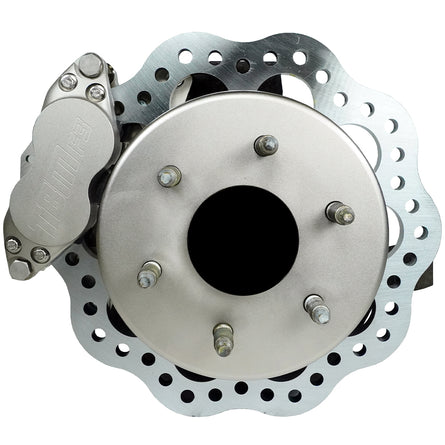

2011-2023 F-150 2WD/4WD F3 Medium Duty Front Drag Racing Brakes 6 lug 001-0329-1

TBM Brakes Medium Duty 4 piston F150 drag racing brakes are designed to deliver ultimate stopping power combined with huge weight savings and durability. Thanks to unmatched F3 4 piston caliper stopping power and a 12" revolution rotor, you will have equal or increased stopping power compared to your factory brakes without carrying the weight.

Install Instructions

Factory brake weight (both sides): approx 78 lbs

Total Kit weight (both sides): approx 27 lbs

This kit fits the following:

• 2011-2023 F150 2WD

• 2011-2023 F150 4WD

Note: This Kit Reuses Factory Hubs

Note: These only work with 17" or larger wheels

Note: These work with factory 14mm diameter wheel studs

Note: We do not recommend using with ABS as it can create unpredictable bias per corner which can cause heat control issues.

Weight: 12.5lbs per side or 25 lbs overall. This kit saves 60 lbs over factory disc brakes (both sides).

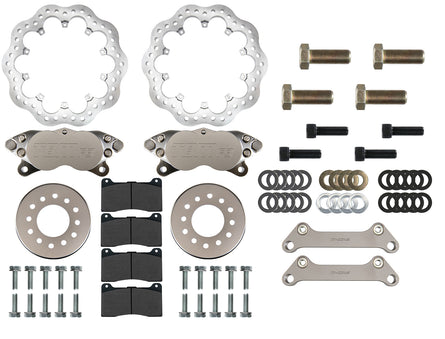

Kit includes:

• F3 4 piston calipers 002-0192SSP-1 / 002-0192SSP-2
• #1 standard track pads 6-0102W45

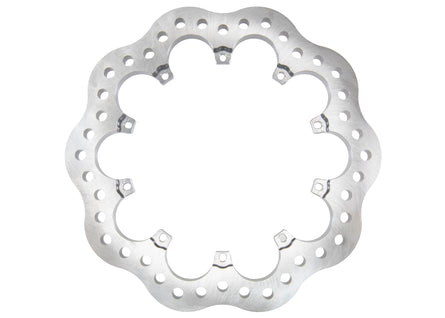

• (2) 12.50 x .500” thermally treated revolution rotors

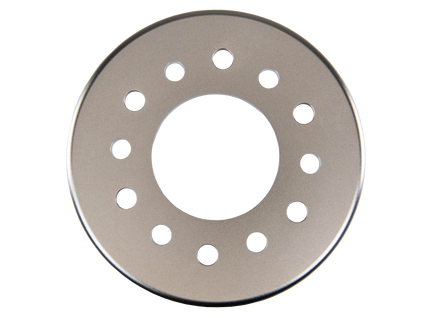

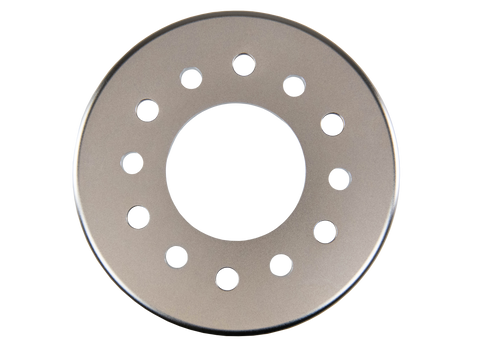

• (2) Aluminum rotor hats 204-0226

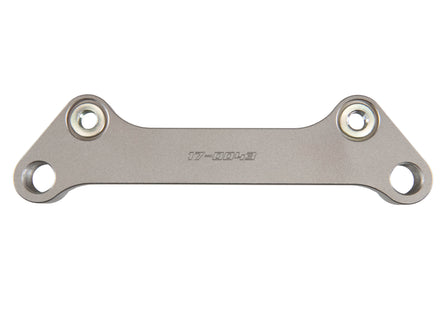

• (2) Aluminum caliper mounting bracket 17-0043
• Hardware kit

Installation of this kit will require 3AN lines that are sold separately

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

*Please use red Loctite on all rotor bolts*
