Motion Raceworks

MFP-LSPS-CVBD

Motion Raceworks Passenger Side Belt Drive LS Mechanical Fuel Pump Bracket Corvette Spacing

Racing Use Only, Not Legal for Road Use

more than 10 items left

Motion Raceworks Passenger Side Belt Drive LS Mechanical Fuel Pump Bracket Corvette Spacing

Motion Raceworks goal is to bring viability to the market.  This complete fuel system bracketry kit gives you everything you need to get going.  This kit uses the HTD pulley that bolts to the back of the ATI Balancer to drive the system.

NOTE:  If you have any questions on pulley combinations, compatibility, etc please call us at (800) 878-9274

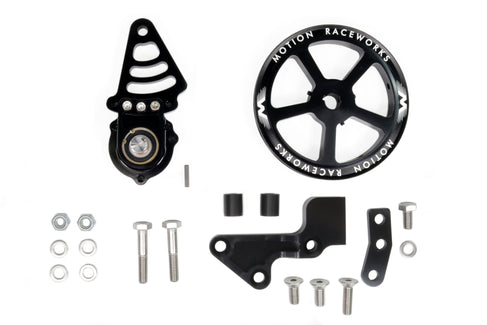

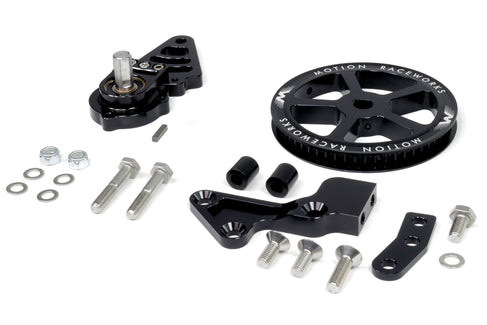

Included in this kit are the following:

-Passenger Side block mounting bracket (non motorplate setup)

-Required Spacers and Hardware

-Adjustable Swinging Aeromotive Pulley/Shaft Mount

-Corvette Pulley Size (58 tooth)

-Belt



Also Needed:

-ATI pulley with HTD drive setup on rear

        • Complete Balancer with HTD Hub https://www.motionraceworks.com/collections/ati-performance-products/products/ati-corvette-super-damper-balancer-w-8mm-htd-28-tooth-pulley-complete-917304-ls1-2-3-6
        • HTD Hub Only To Replace Current Hub https://www.motionraceworks.com/products/ati-ls1-2-3-corvette-y-body-hub-w-htd-8mm-28tooth-hub-only-916033a



NOTE:  This system will not allow you to run AC drives in conjunction.  You need to order ATI HTD pulley rear hub or ATI balancer with HTD pre installed, none are included!

 Learn how to properly size / select a pulley combination for your mechanical fuel pump / mechanical oil pump

Please watch this video to learn about the modularity of this bracket.
