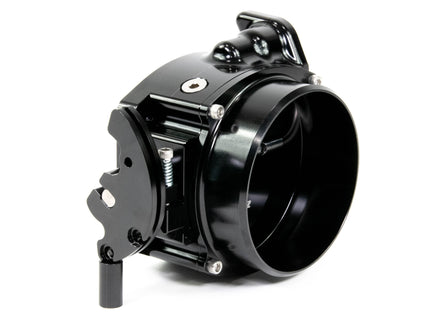

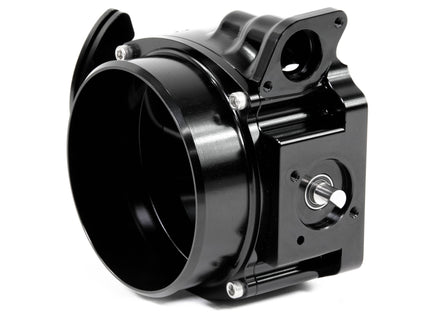

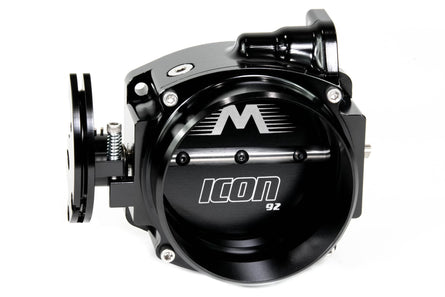

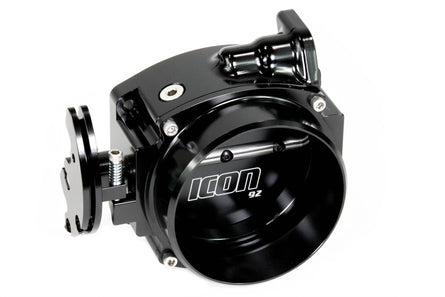

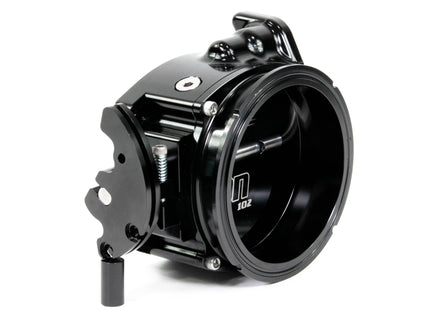

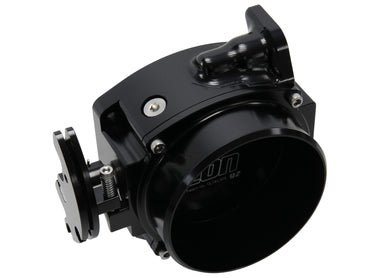

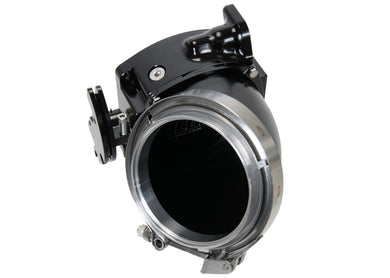

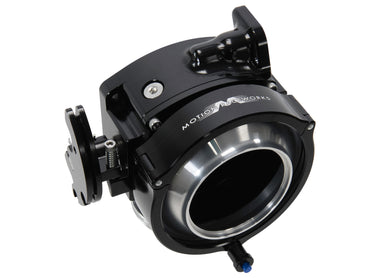

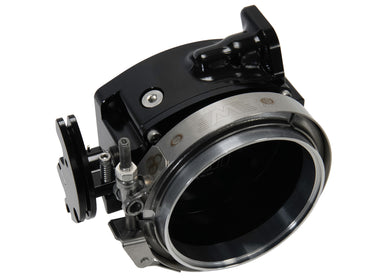

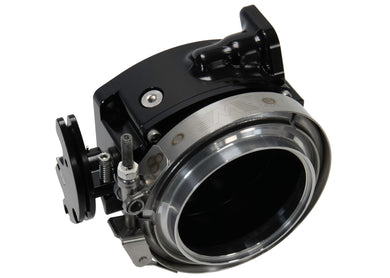

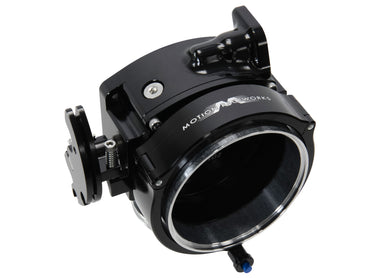

ICON 92/95mm LS Cable Drive Throttle Body (Black) w/ Interchangeable Connection

Motion Raceworks

10-130BLK-1

 (158)

Motion Raceworks - 10-130BLK-1

In Stock - 8 available

Ships Tomorrow, When Ordered Before 2pm CST

$399.99

Starting at $38 /mo with
View full details

Racing Use Only, Not Legal for Road Use

Note: This will work on any 92 or 95mm LS pattern intake even though it is a 92mm throttle body!

Derived from years of design, desire for something better, and innovation in the automotive aftermarket.  The Motion Raceworks Made in the USA ICON series throttle body adapts to nearly any build with a modular front attachment that allows you to change from a standard barb, to a vband, quick seal boost coupler, billet transitions and more. These throttle bodies have proven to perform from daily drivers to Pro Mods and everything in between! There are multiple variations of the ICON throttle body, see specs below for this listing. Click Here for other options

This ICON throttle body features an optimized IAC design for excellent IAC control with low noise which makes it a tuners choice for factory and aftermarket ECU's alike.

Specs

  • Bolt Pattern: LS 4 bolt
  • Finish: Black Anodized
  • Blade Size: 92/95mm
  • Linkage Style: Cable Drive
  • IAC Port: Yes, LS style

Features:

  • 100% Dreamed, Designed, Engineered, CNC Machined, and Assembled in the USA
  • Low Profile IAC reduces weight and overall height profile for hood clearance
  • Design creates shortest throttle body on the market with modular attachments
  • Overall length with attachments reduced by over 30%

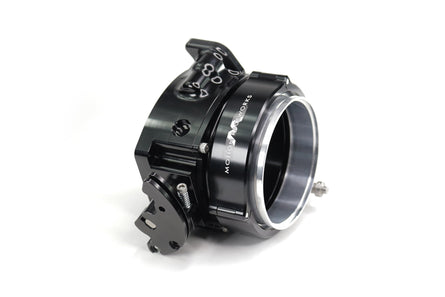

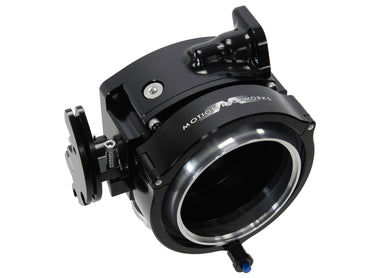

  • Interchangeable Connection (ICON) design allows for easy change of frontal attachment
  • Utilizes Motion Raceworks Patent Pending ICON technology to easily adapt necessary attachments.
  • 1/8" NPT connection for fresh air/pcv style connections needed

 Compatibility:

  • Utilizes industry standard GM LS style IAC
  • Utilizes LS style TPS sensor
  • 4 Bolt LS2 style throttle body bolt pattern for maximum compatibility
  • Throttle Attachment uses standard style cam for use with GM/Lokar LS style connections.
  • Compatible with Coyote Gen 1, Gen 2, and Gen 3 intakes using this adapter: Click Here
  • Compatible with SBF style intake using this adapter: Click Here

Learn about what makes the ICON 92mm and 102mm Throttle Body so unique!

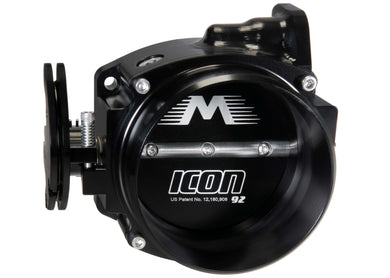

U.S. Patent Number:  12,180,908

*Patent Pending*



Attachments (see below): ICON throttle bodies utilize a patented 4 bolt interface that allows you to change the front connection at anytime without rebuying the entire throttle body. This saves packaging space and prevents welding or fabricating on your throttle body.

  • Ultra Grip 4" OD Barb Attachment (Direct Replacement for other LS2 aftermarket throttle bodies)

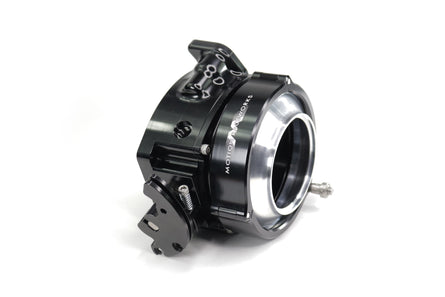

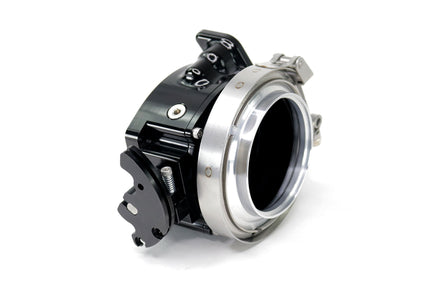

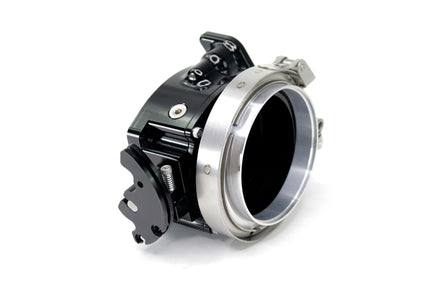

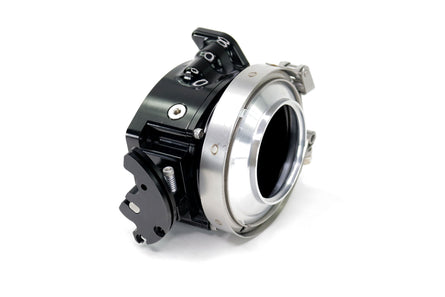

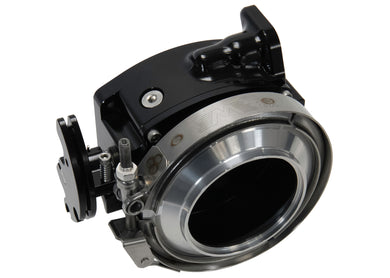

  • 4" V-band w/ Quick Release Clamp (Includes Aluminum Weld Flange)
  • 3" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)
  • 3.5" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)
  • 4" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)

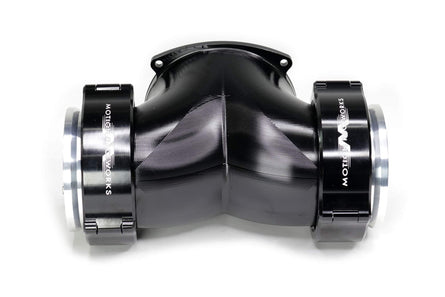

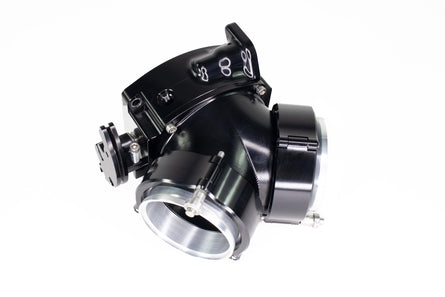

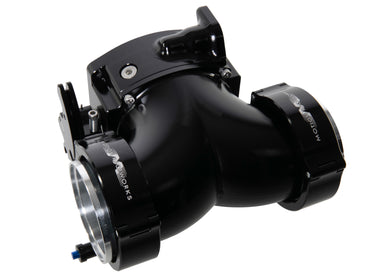

  • Dual 3" Y w/ V-band Attachment (Includes Aluminum weld flanges and clamps)
  • Dual 3" Y w/ Quick Seal Boost Couplers (Includes Aluminum weld flanges)

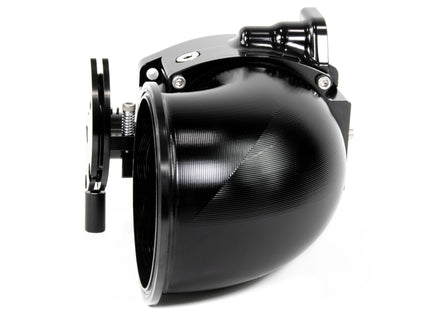

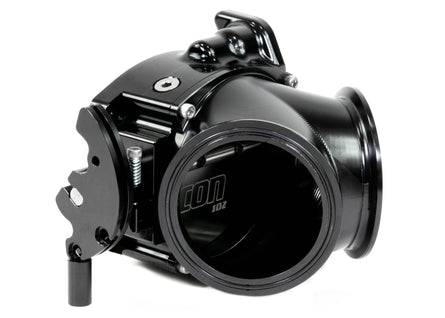

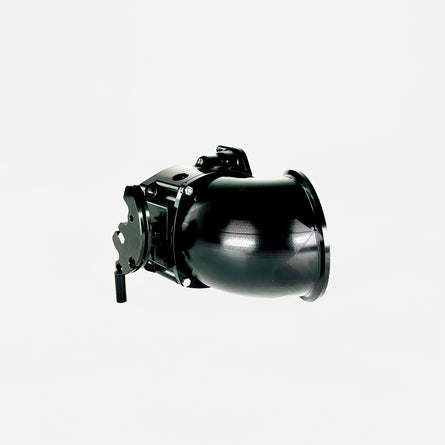

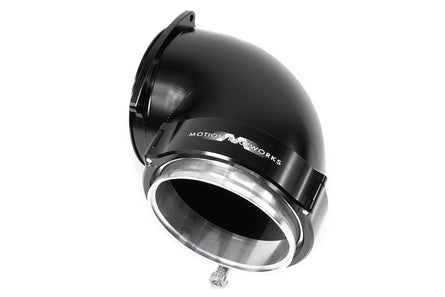

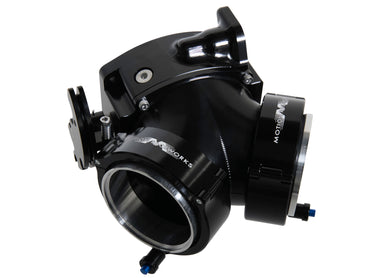

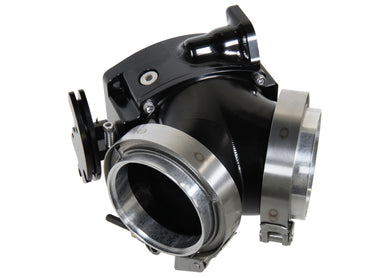

  • 90° Aluminum 4" w/ V-band  (Includes Aluminum V-band flange and quick release clamp)
  • 90° Aluminum 4" w/ Quick Seal Boost Coupler (Includes Aluminum weld flanges)

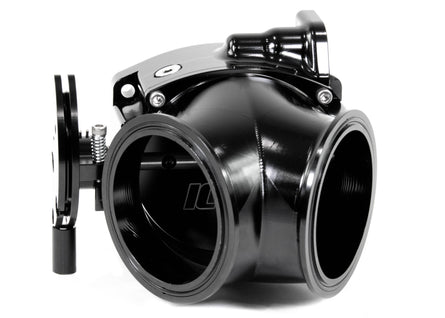

  • Dual 3" T w/ Quick Seal Boost Coupler (Includes Aluminum weld flanges)

Need a new throttle cable for your ICON throttle body? Check out our Motion Raceworks Throttle Cable: Click Here

Need a throttle cable bracket for your icon throttle body? Check out our universal throttle cable bracket: Click Here

Need a replacement O-ring for your 92mm Interchangeable Connection:

Find instructions here: Click Here

Customer Reviews

Overall rating: 4.9 / 5 from 158 reviews.

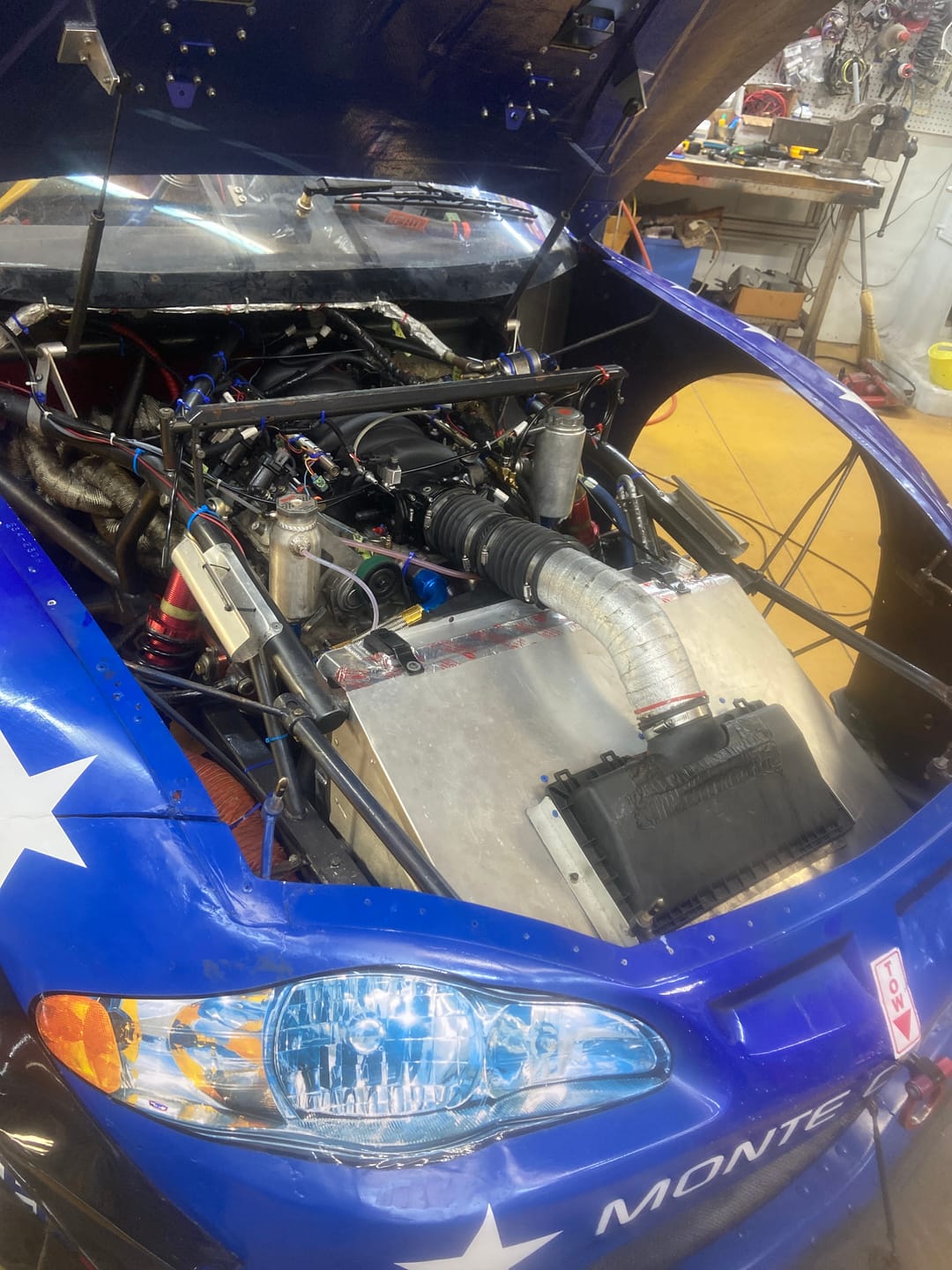

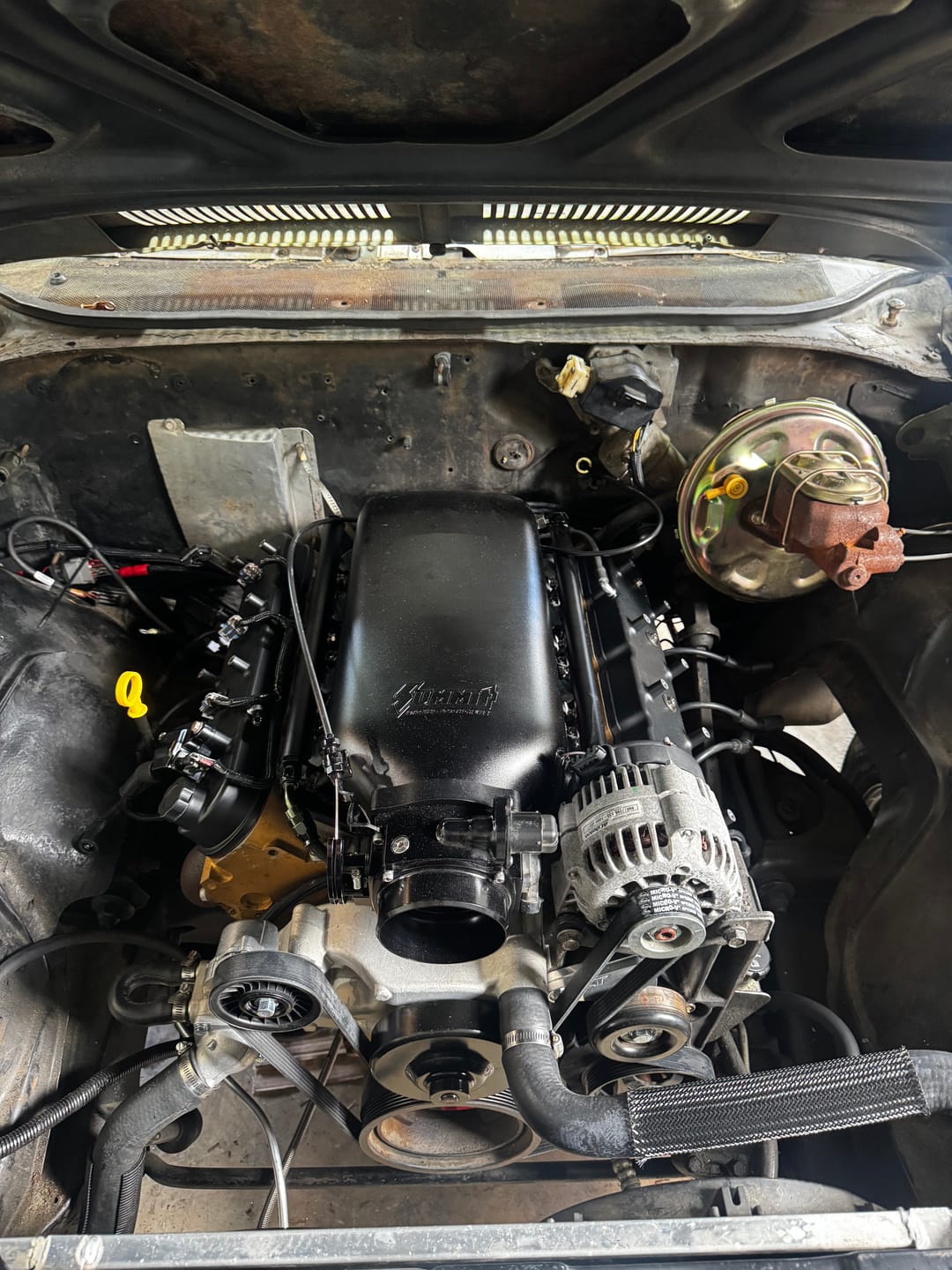

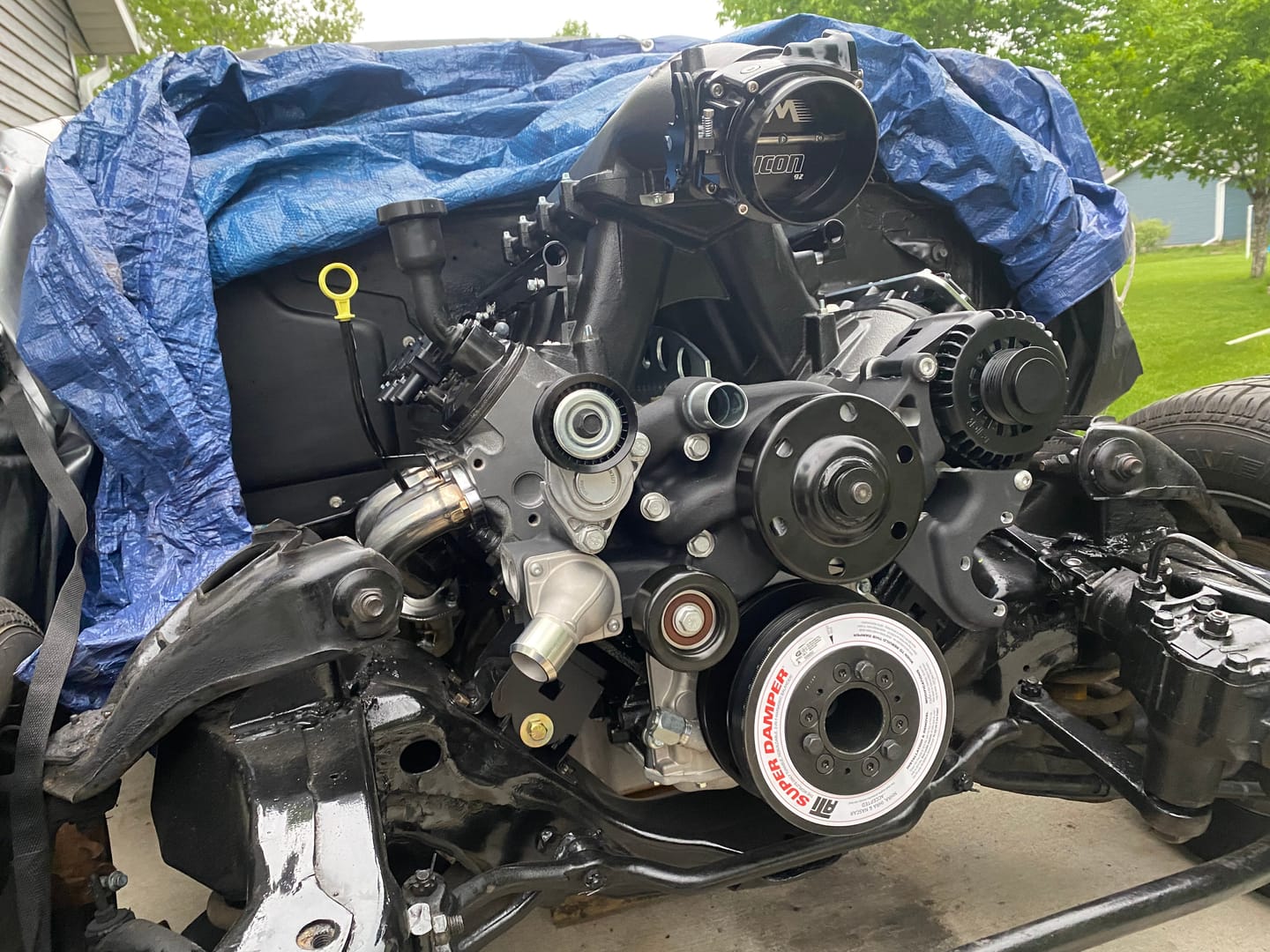

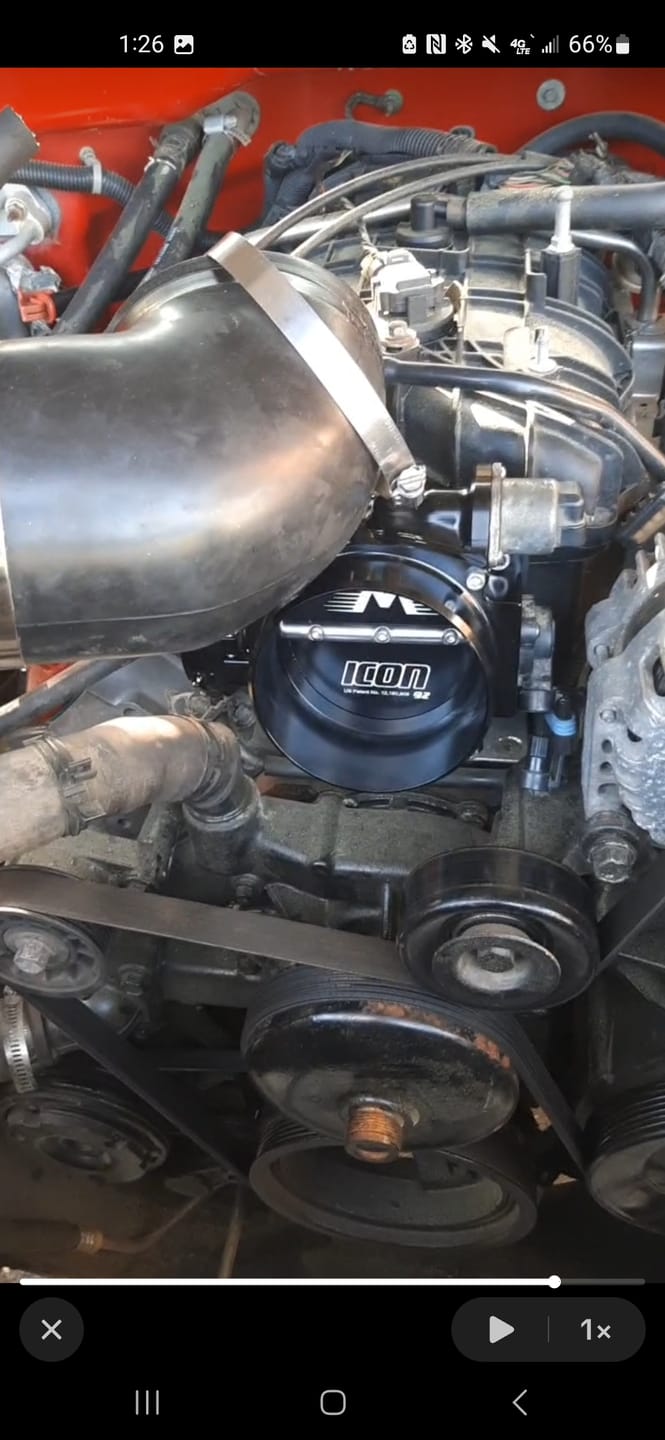

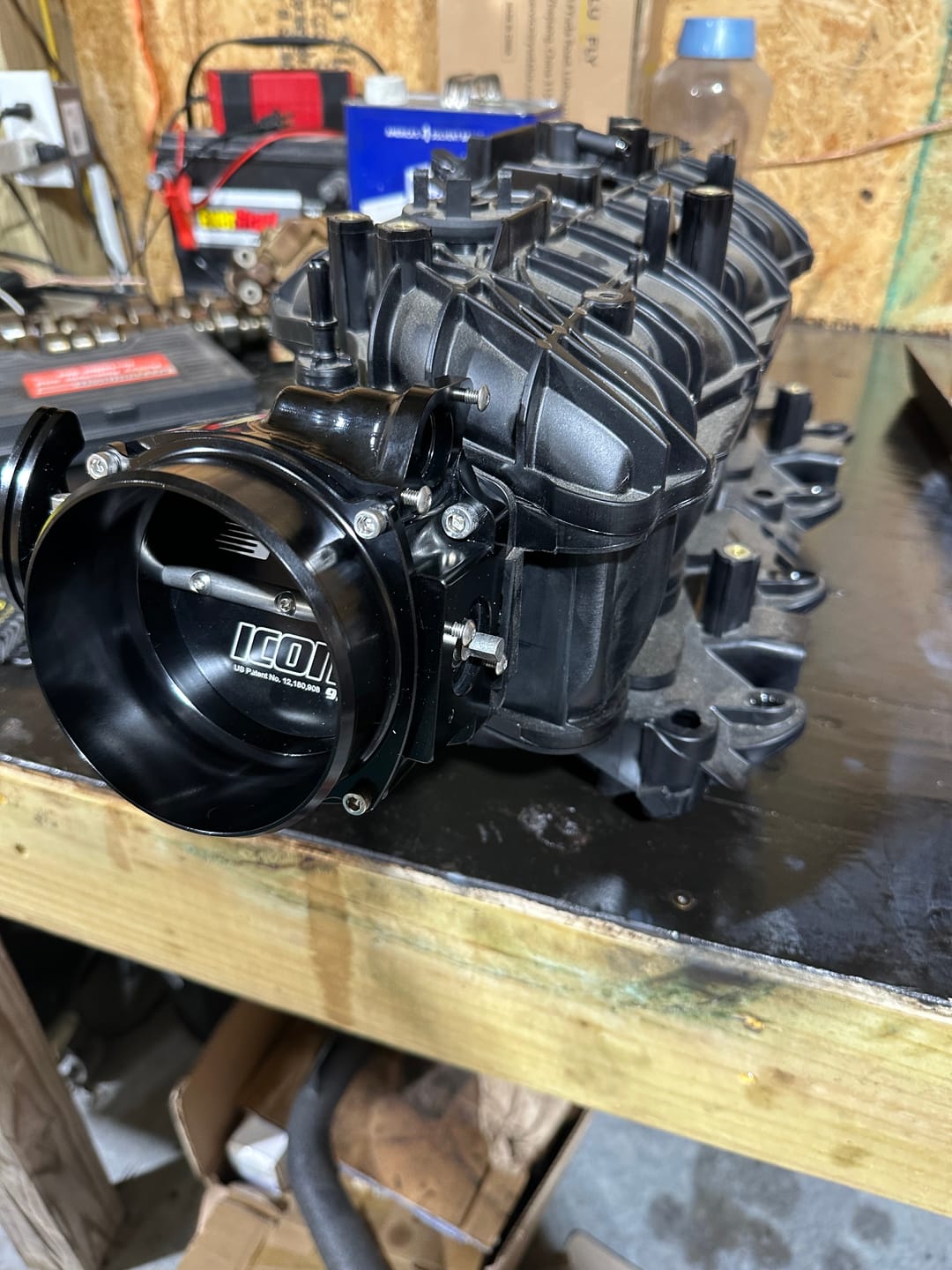

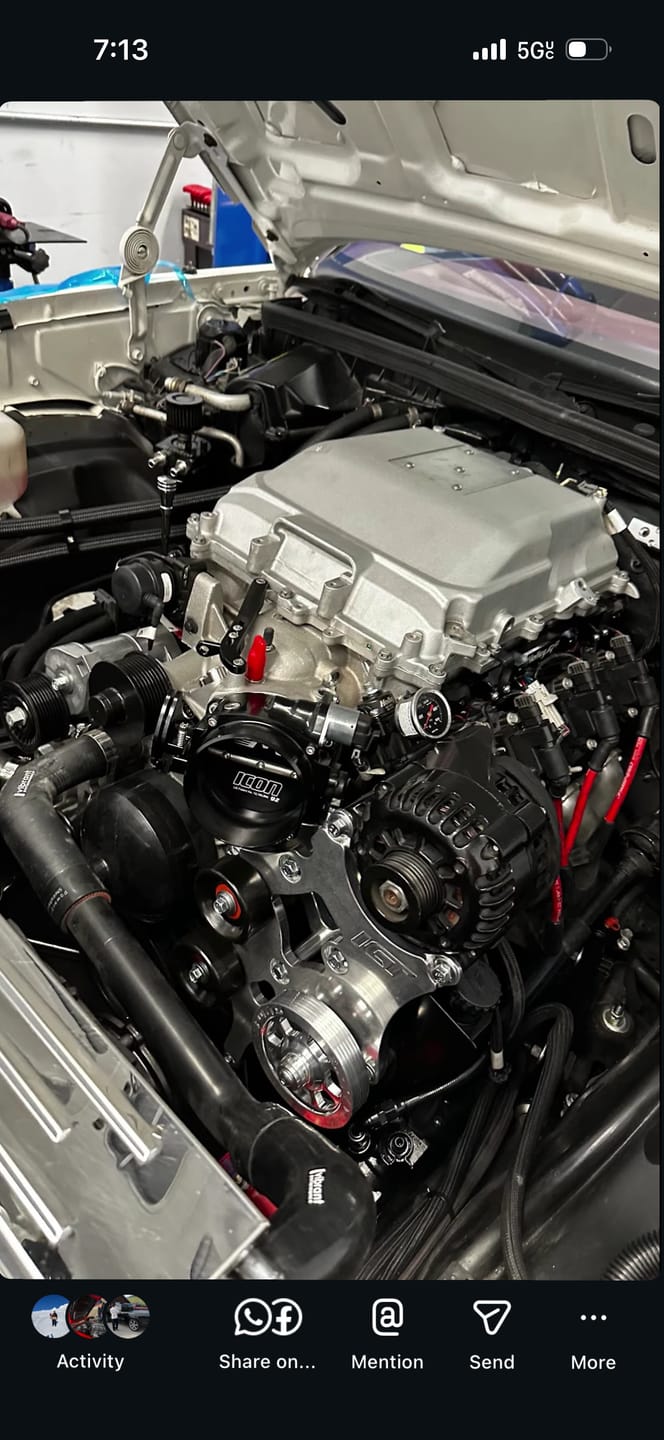

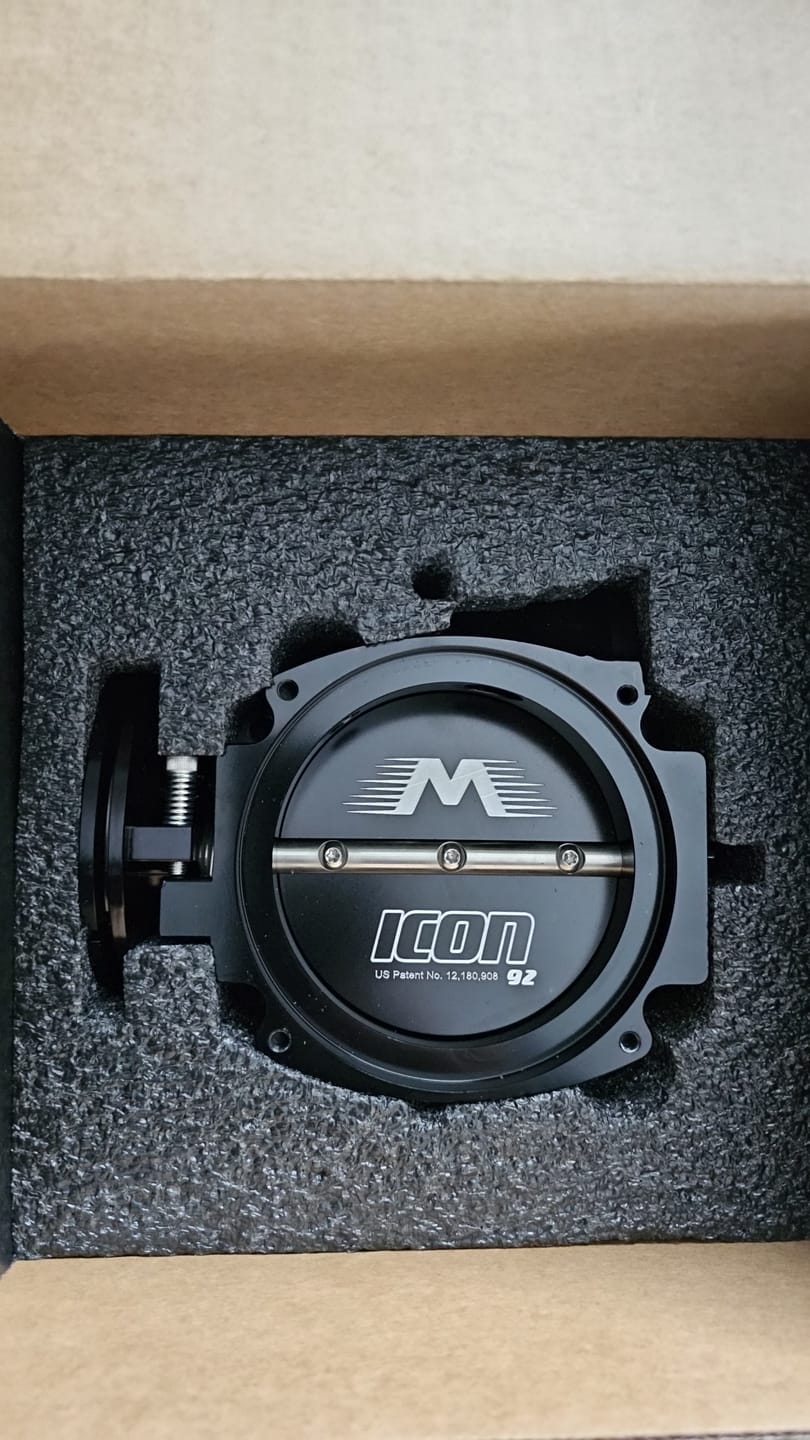

Customer photo review of ICON 92/95mm Cable Drive Throttle Body (Black) w/ Interchangeable Connection

It is a pleasure doing business with your company. I appreciate everything you do for the sport and for my car toy. Some of us save for a while to get items like these and when they come if perfect condition like the ones I got from you did, it makes dreams come true, well at least a step closer 😀. Sincere appreciation to the entire Motion Raceworks team.

David D. 5/5 Verified

ICON 92/95mm Cable Drive Throttle Body (Black) w/ Interchangeable Connection

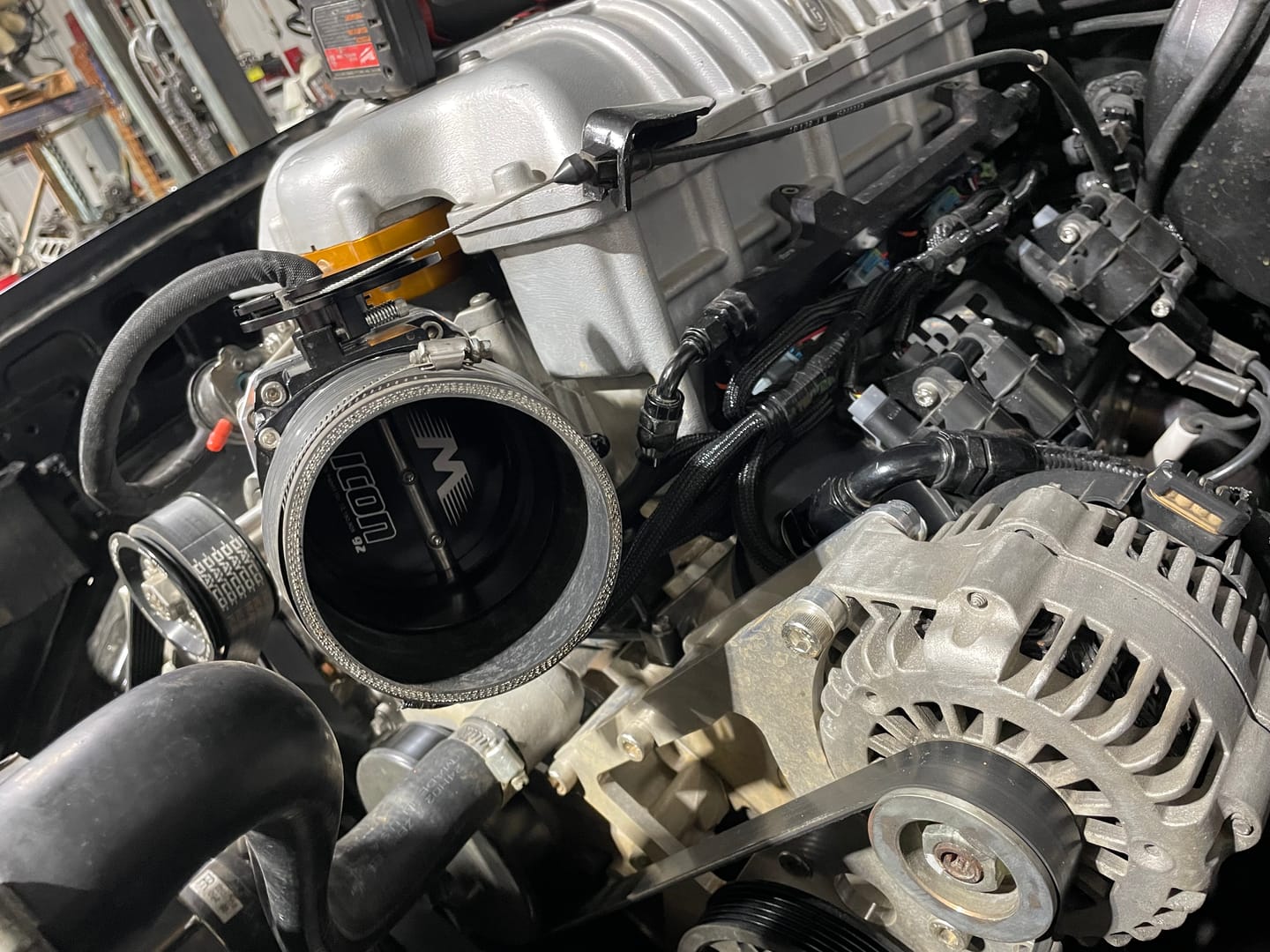

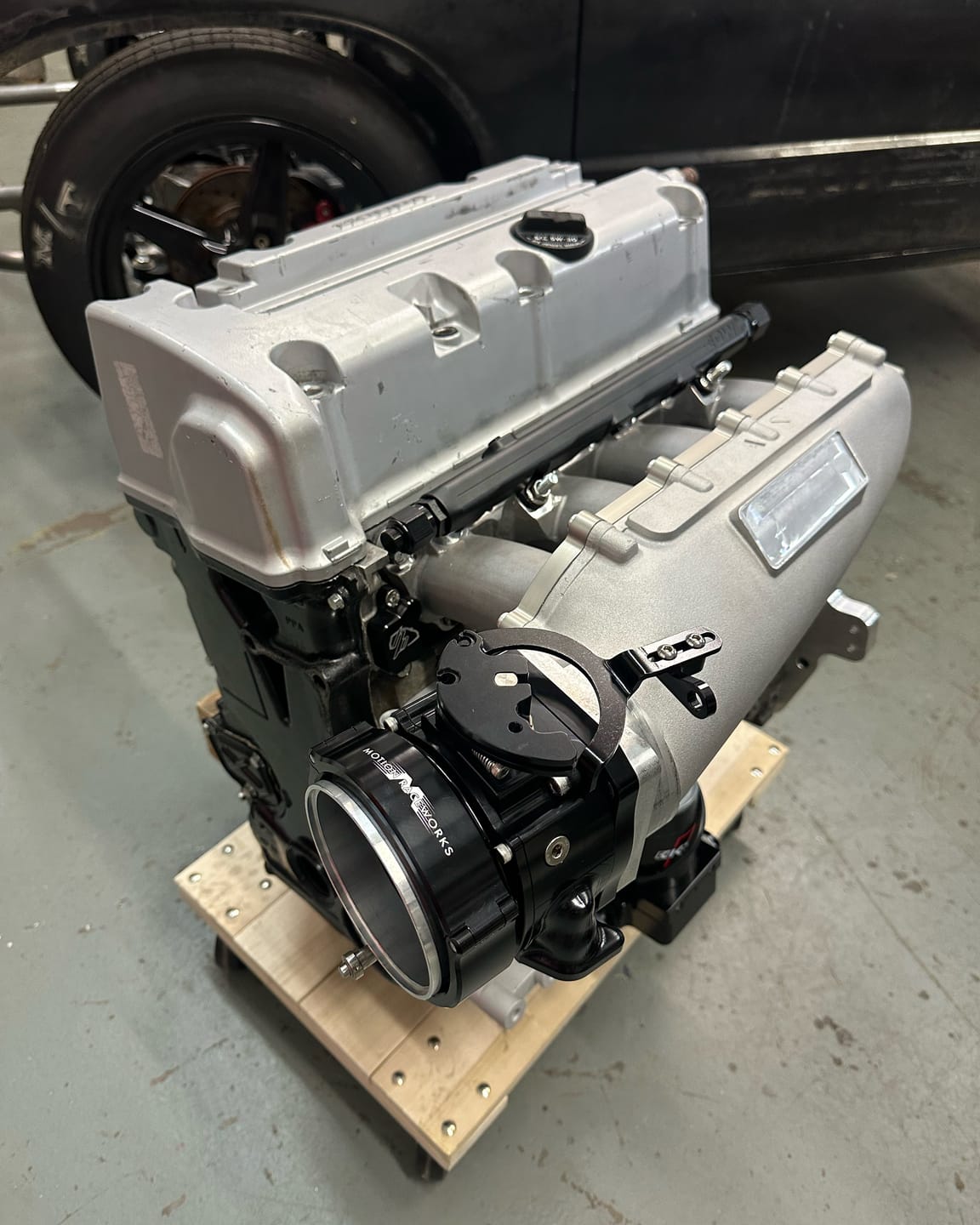

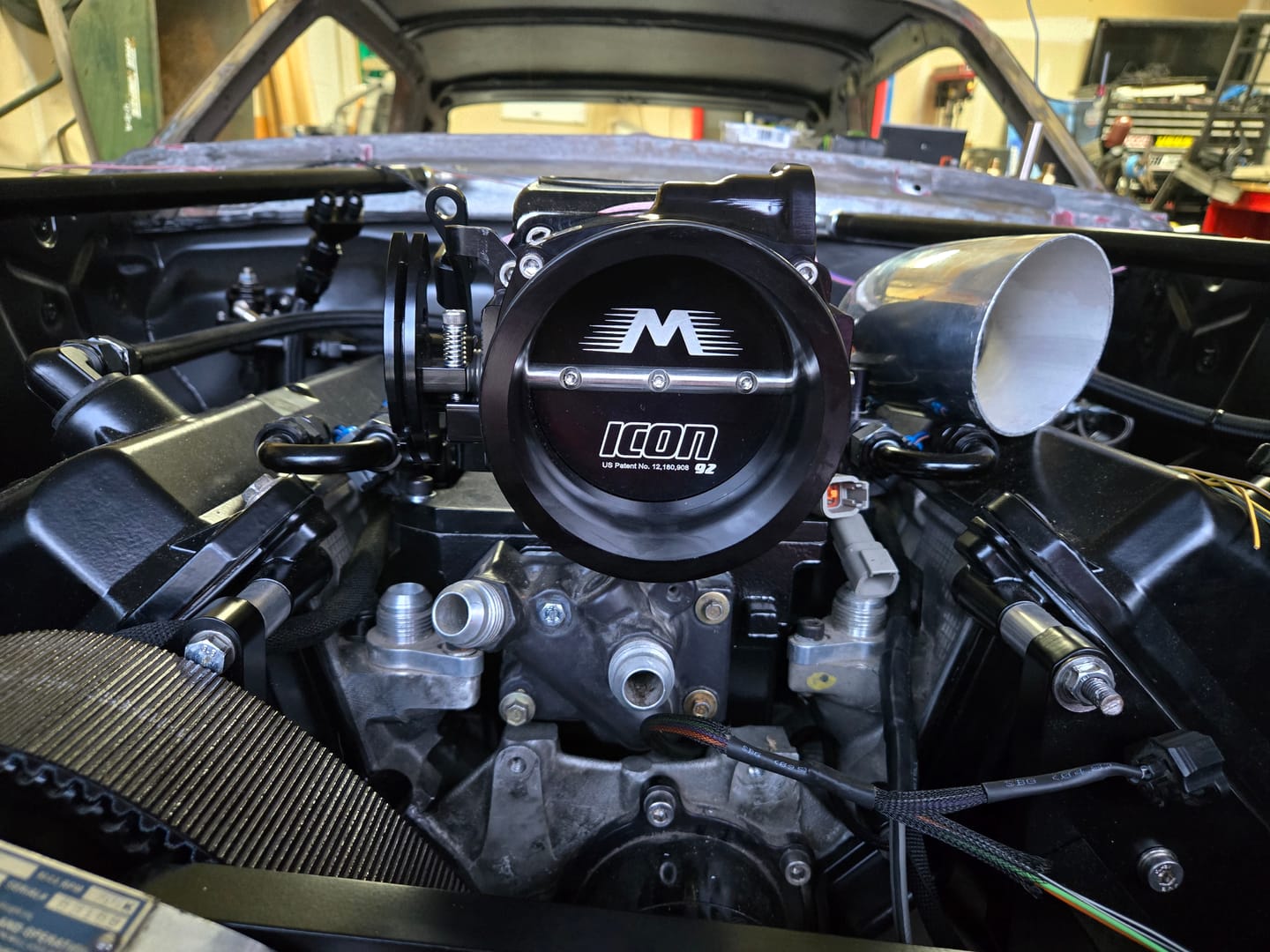

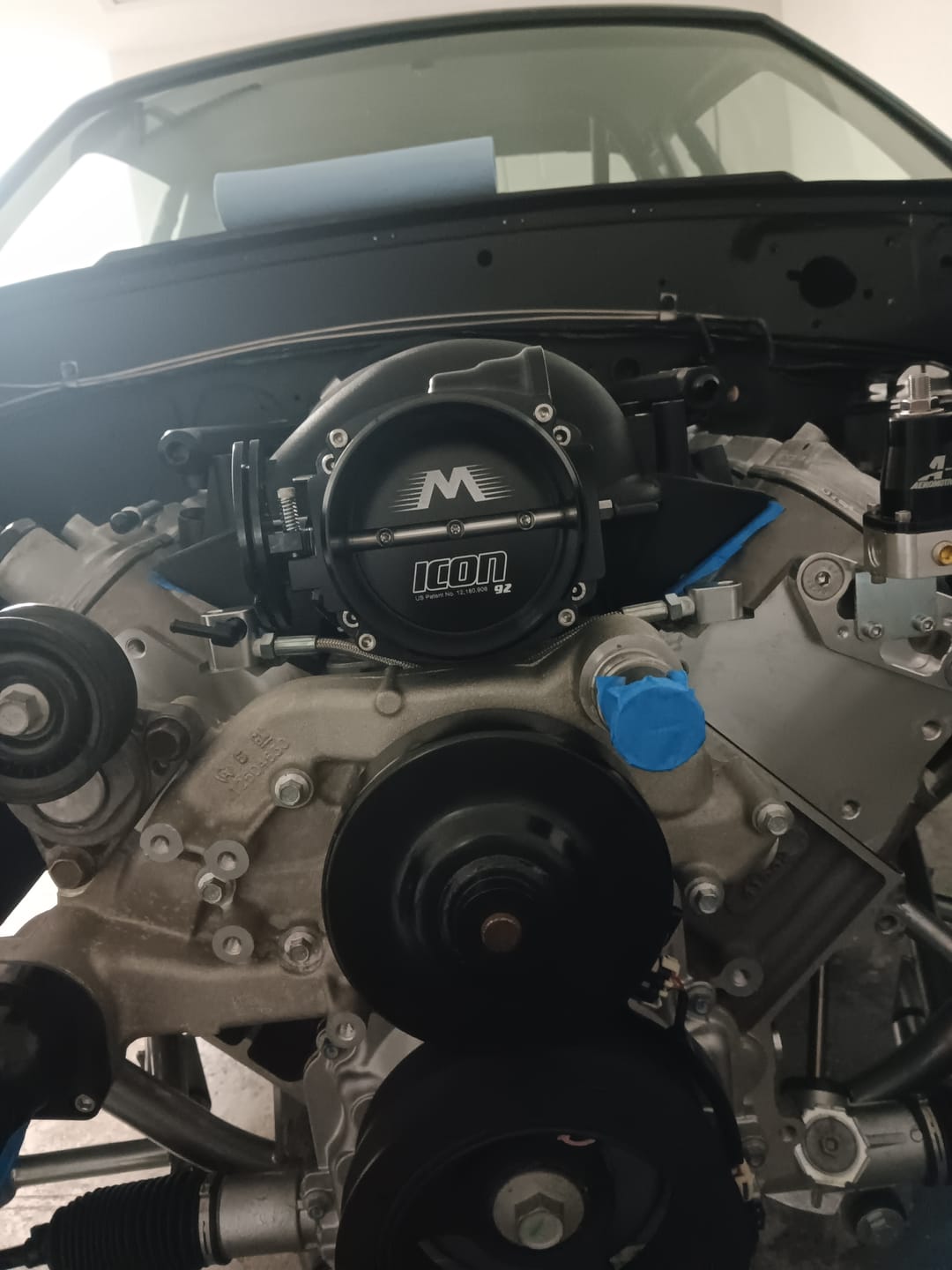

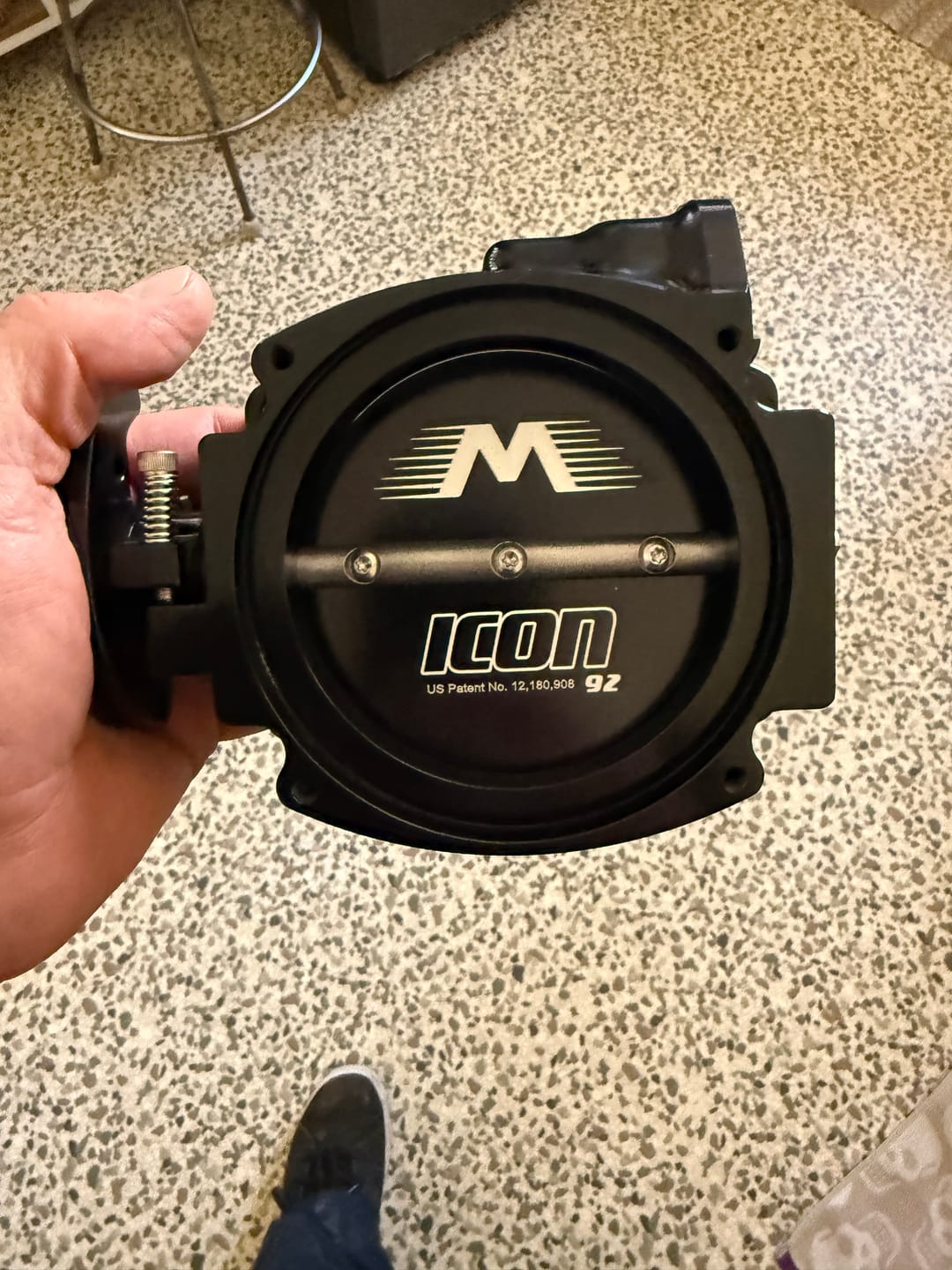

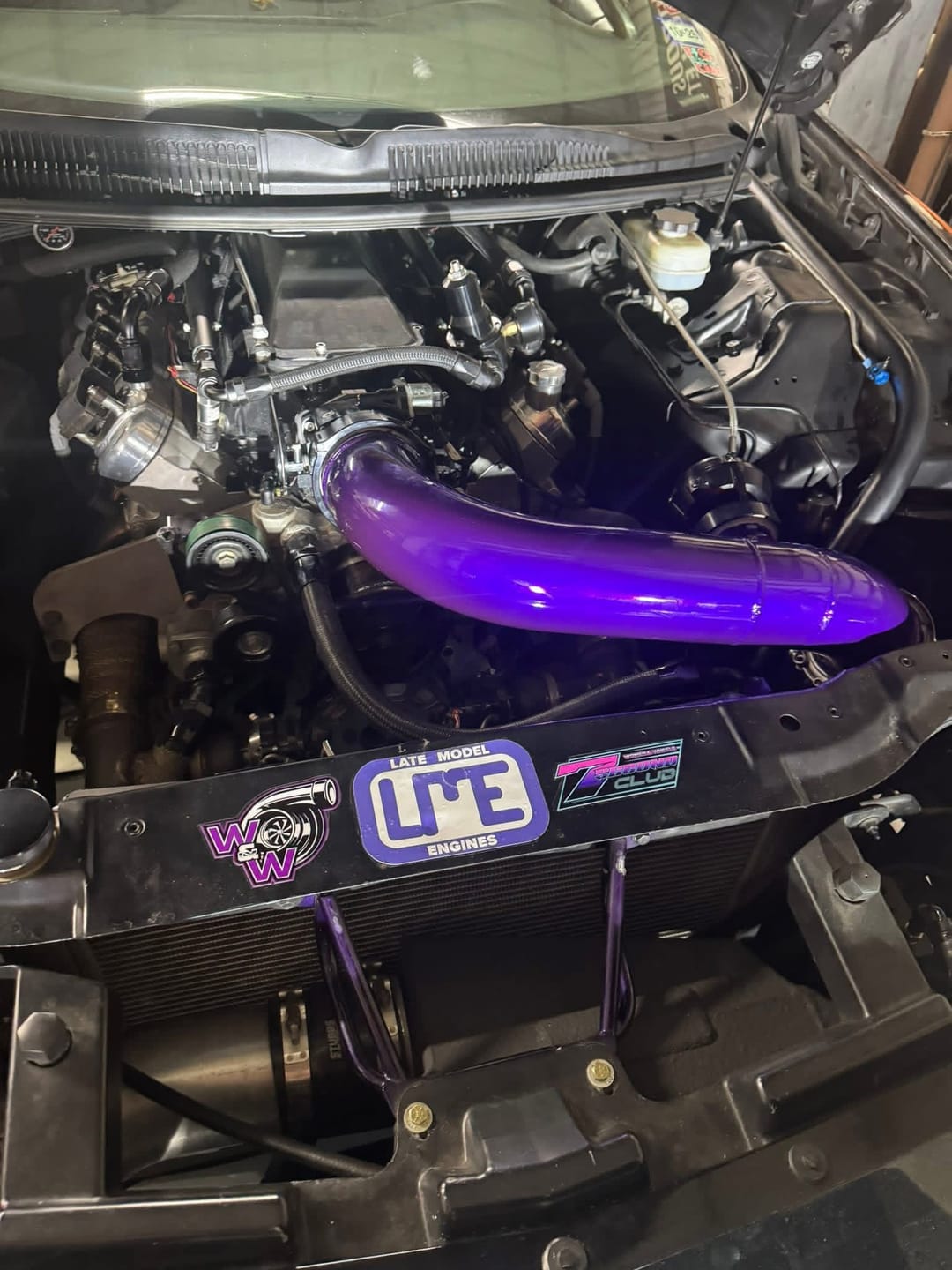

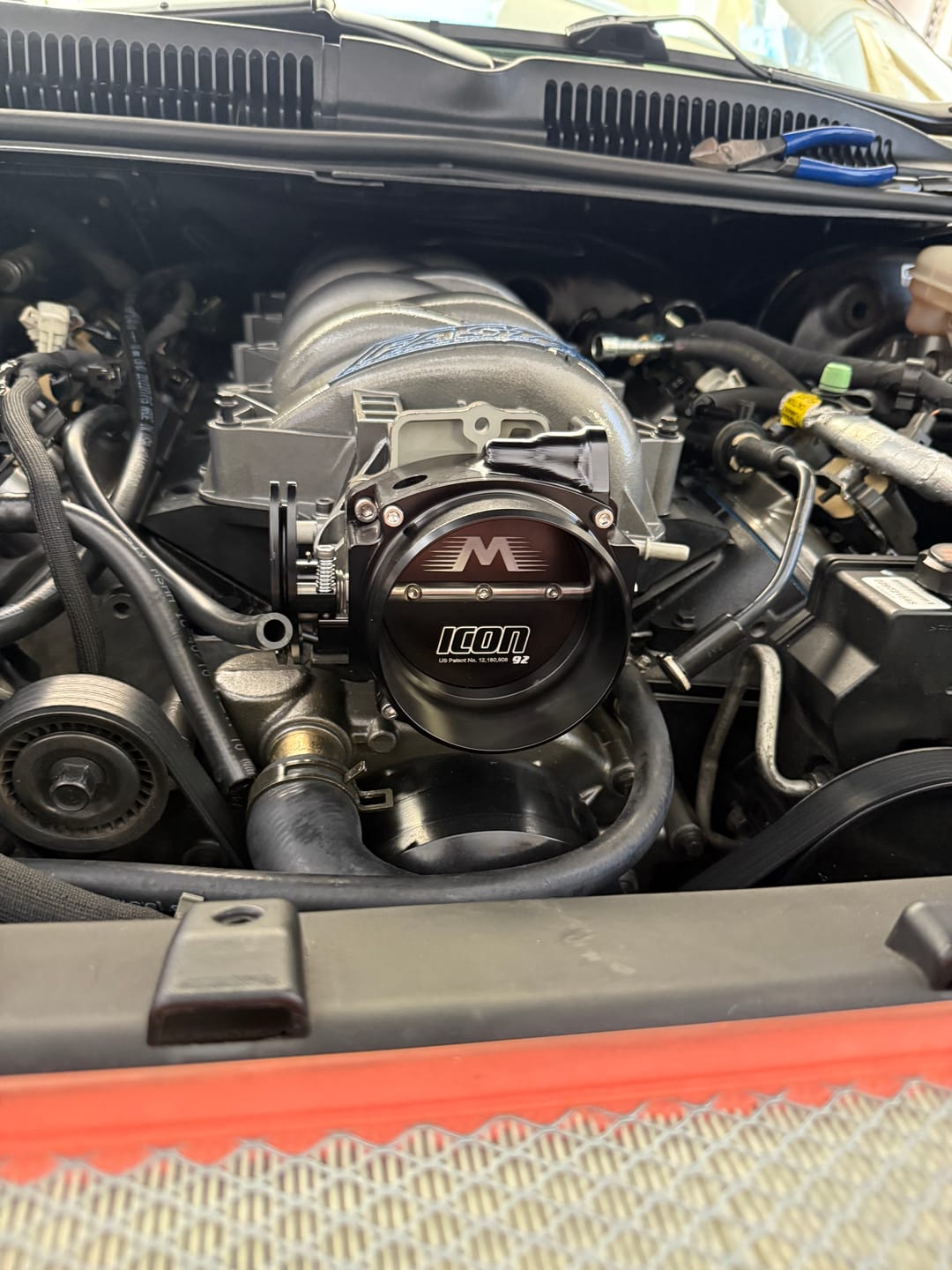

Customer photo review of ICON 92/95mm Cable Drive Throttle Body (Black) w/ Interchangeable Connection

Great quality overall. Love the modulatory and the addition of the 1/8npt port. Fits better than any I've ran so far. Throttle spring is surprisingly light. IAC channel is as close to stock as you can get, no idle or cold start issues and no screaming from the turbulence. My only regret is waiting so long to get it.

Alexundre M. 5/5 Verified

ICON 92/95mm Cable Drive Throttle Body (Black) w/ Interchangeable Connection

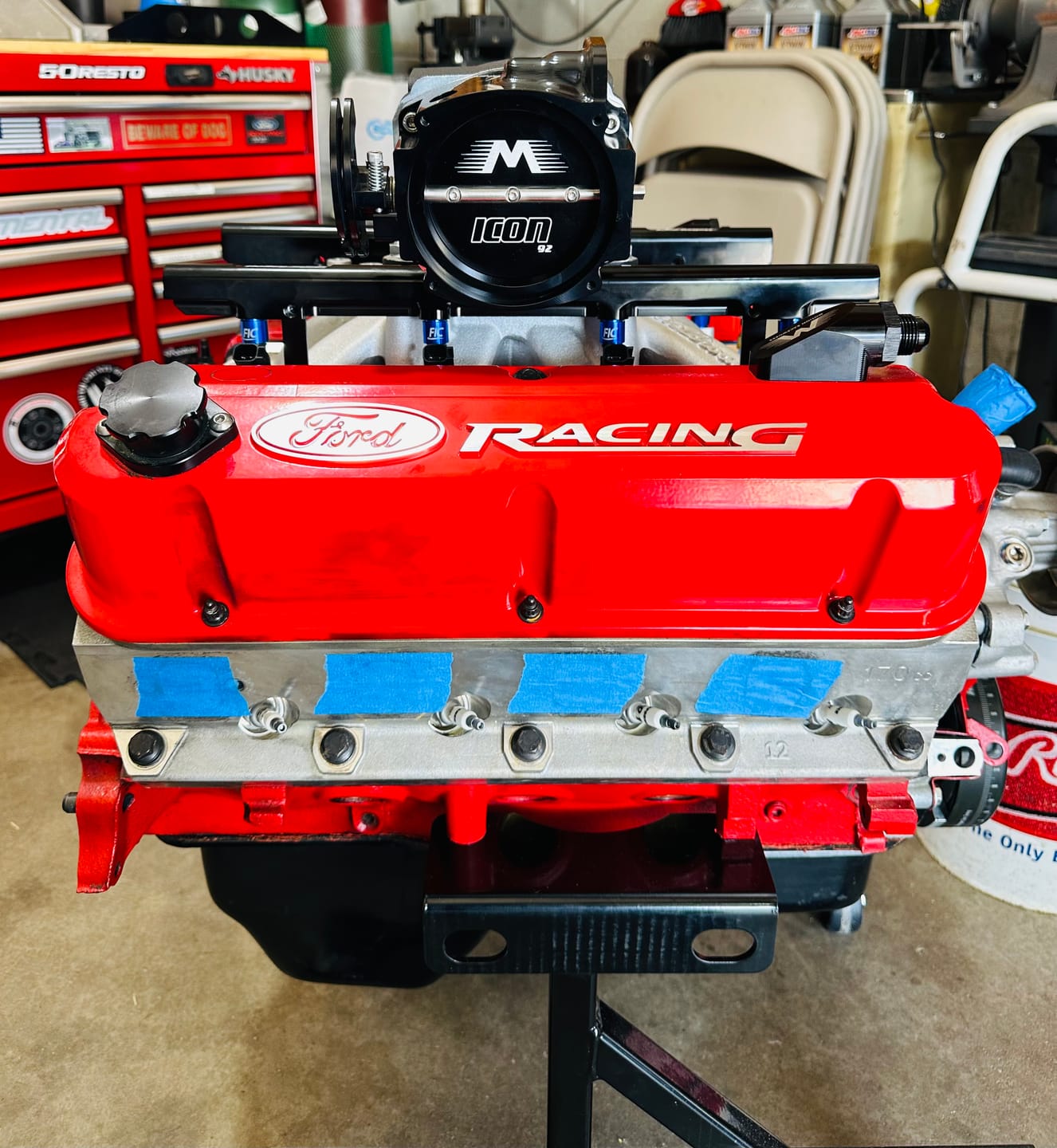

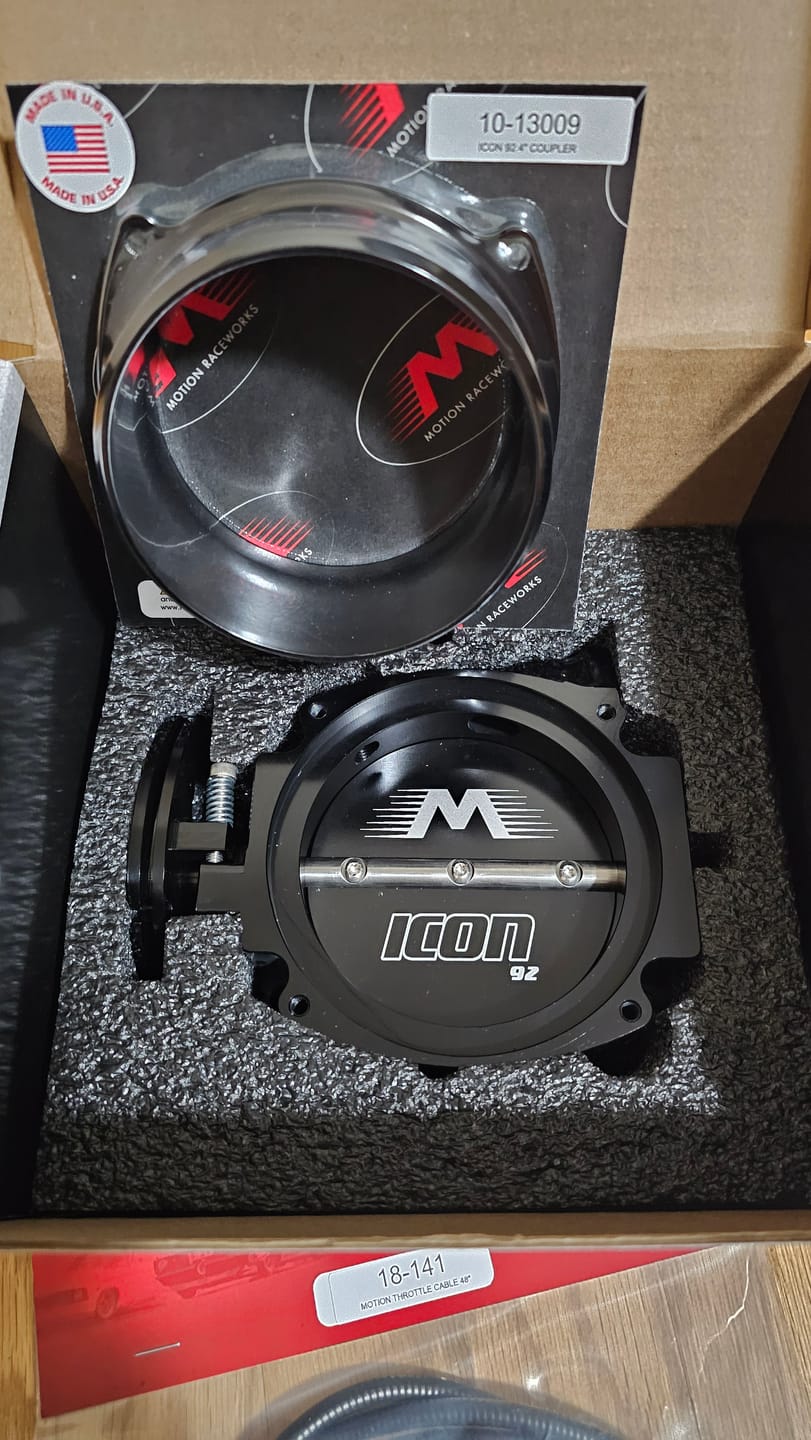

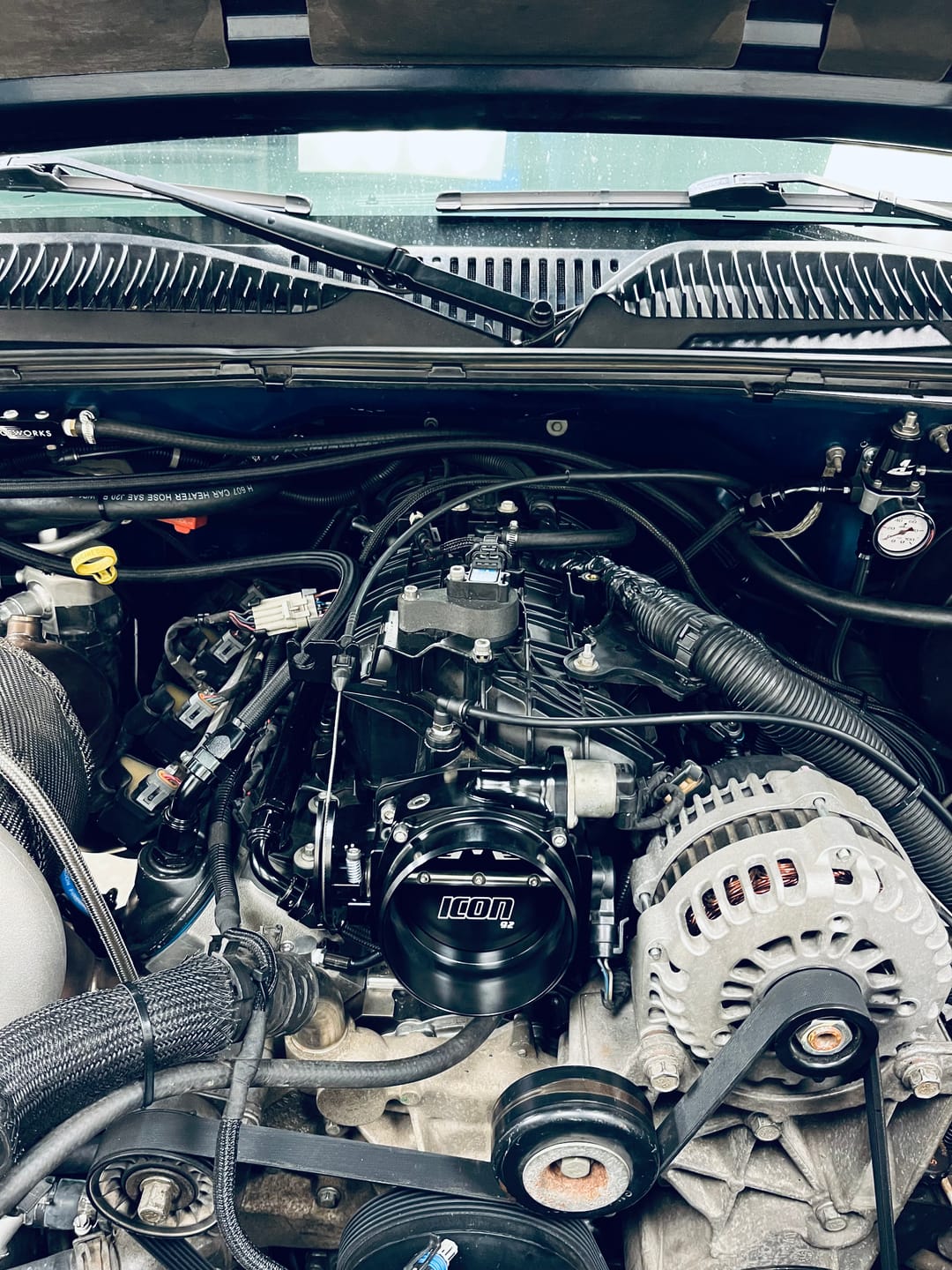

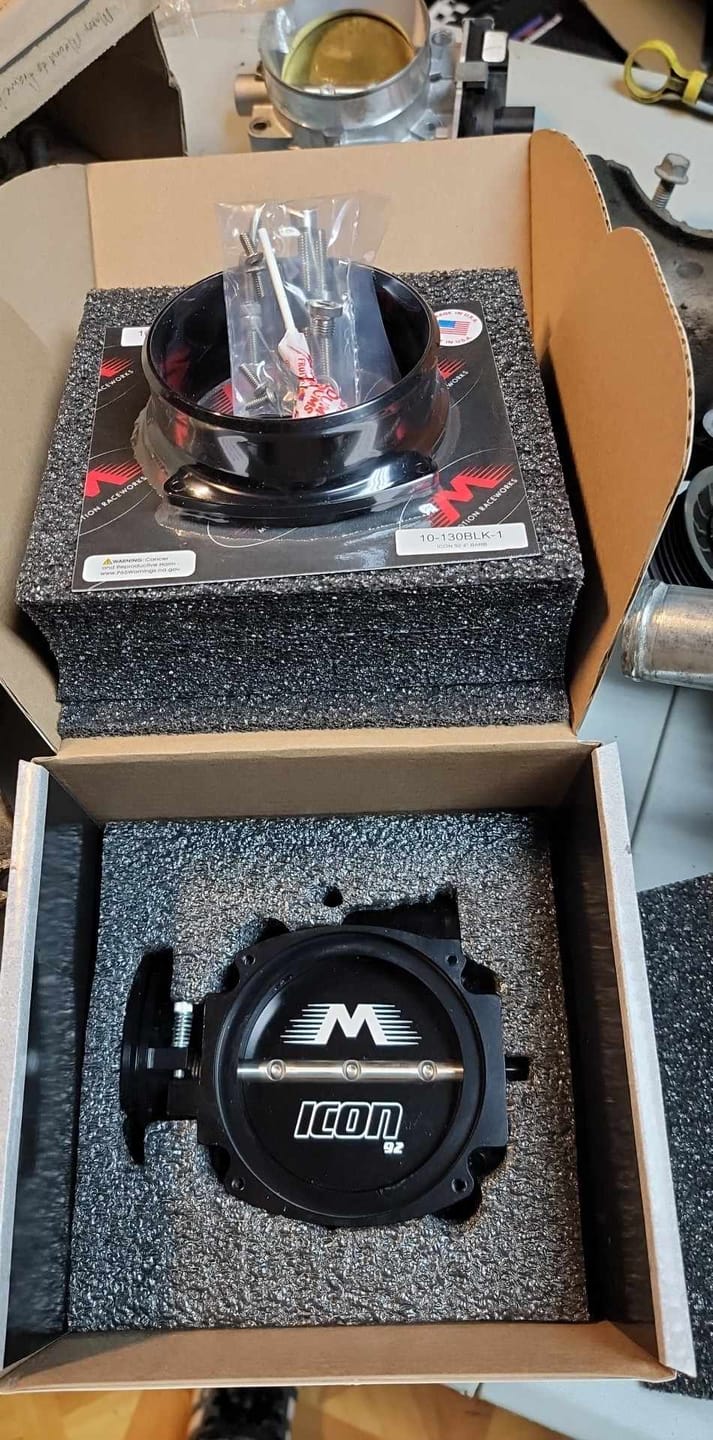

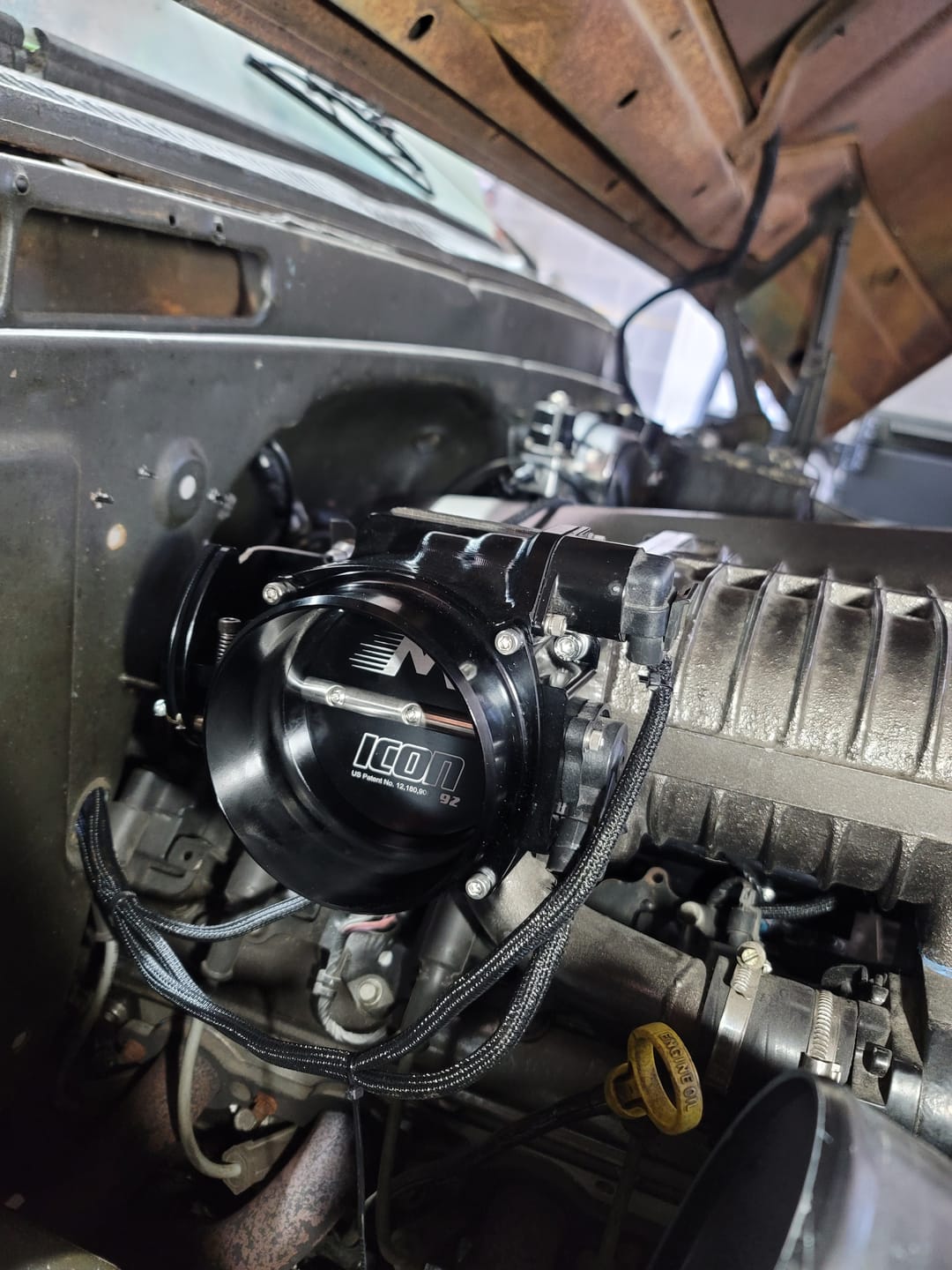

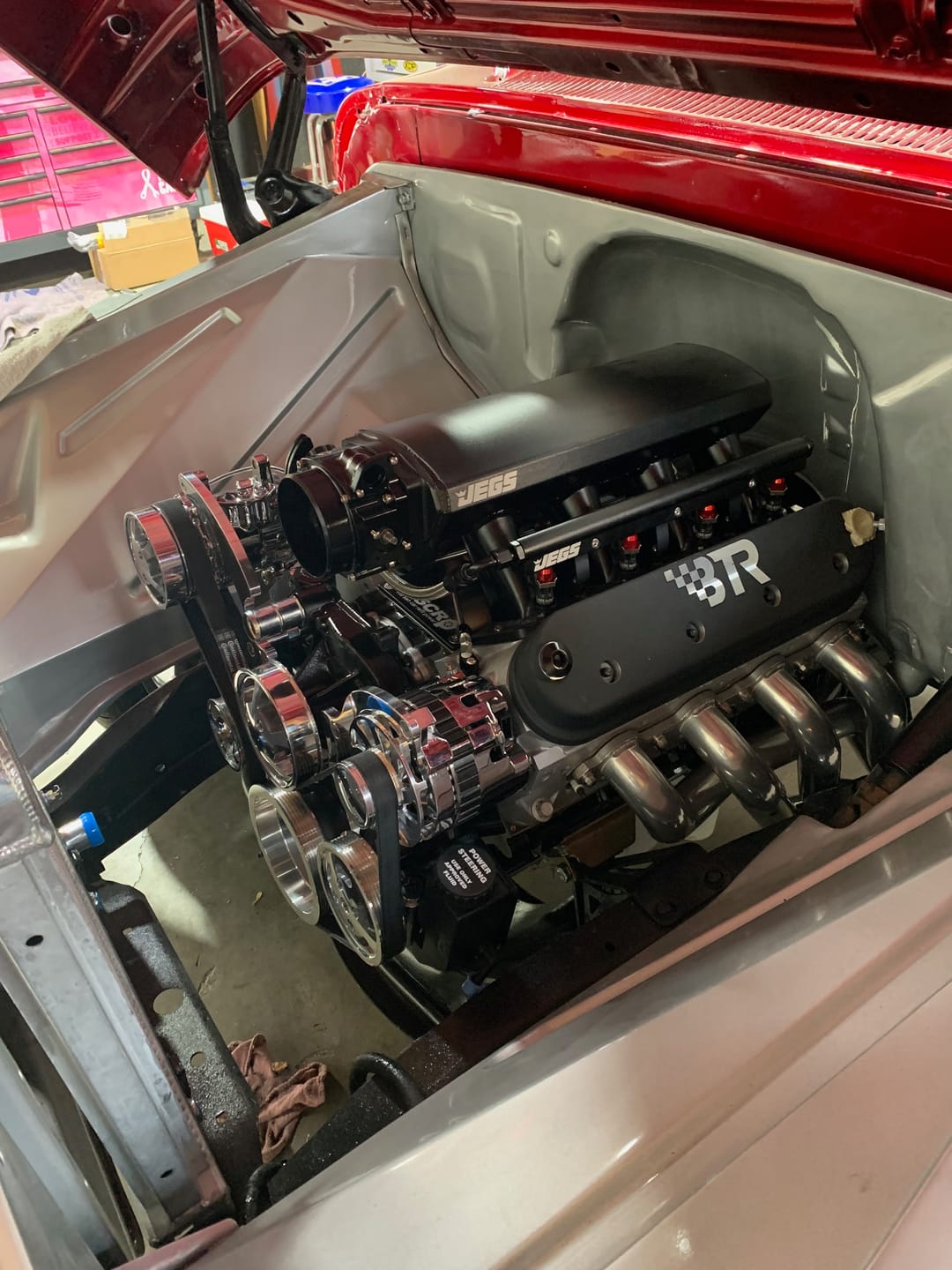

Customer photo review of ICON 92/95mm Cable Drive Throttle Body (Black) w/ Interchangeable Connection
