Motion Raceworks V-band flanges are made to solve many of the common issues in fabrication as well as field usage of the product. We wiped the slate clean and incorporated all of the concepts we knew would make the perfect Vband.
4" OD tubing fits into these Vbands for easy welding and fabricating!
6061 Aluminum Construction (US Material)
Male/Female Vband Flanges
Dovetail O-ring so the O-ring stays in place
Recess for piping
LowProfile Locating Shoulder

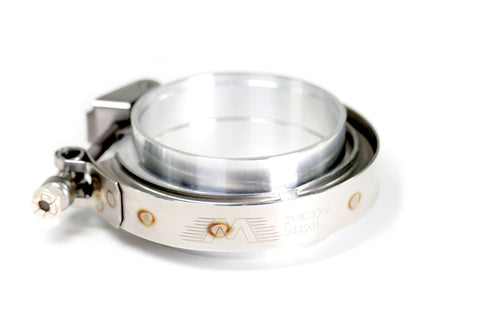

Quick Release Custom Made in the USA V-band Clamp

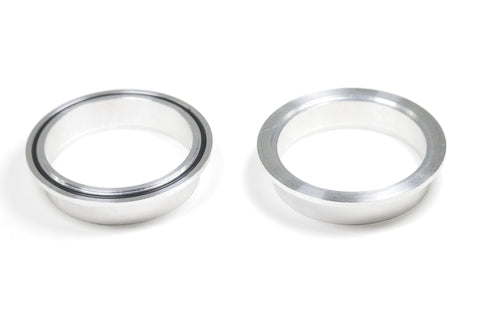

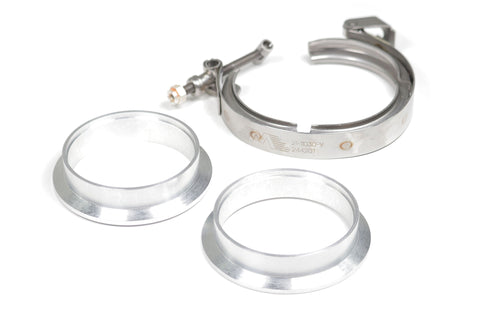

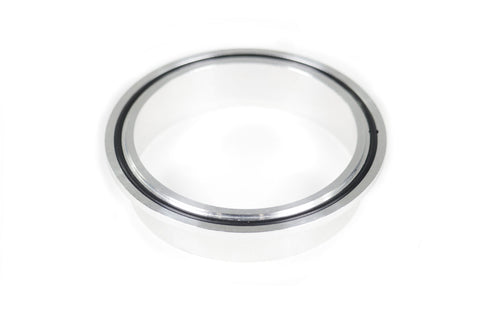

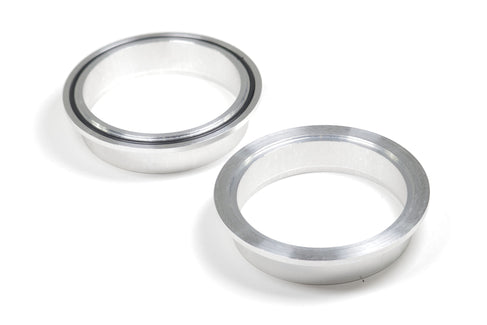

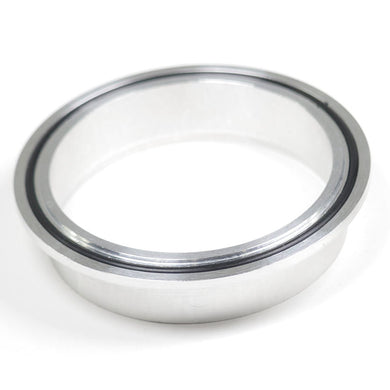

This set is comprised of a Male and Female Vband flange. The male flange has a dovetail O-ring groove so that it actively retains the oring (it is actually pressed into the groove). This means when you take the V-bands apart the Oring does not fall out, in the same respect you know that when you assemble two halves together the Oring is seated and stays in place properly.
Low Profile Locating Step: Internally to the Vband there is a very small locating shoulder. This locates the two halves without making things hard to assemble
Recess for Piping: We build cars here so we know how important it is to have a counterbored recess for the tubing to locate into and bottom out against. This allows for better fabrication and easier mockup.

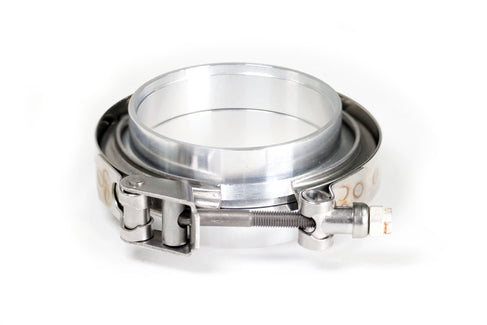

Quick Release Clamp: This is the part that you use! We have a quick release option STANDARD. This means less chance of stripping out threads and easier servicing. These clamps are Made in the USA specially for Motion Raceworks.
