SALE

Motion Raceworks

32-100LT45

Gen V Gen 5 LT4/LT5 Top Loader Catch Can Kit 32-100LT45

 (1)

Motion Raceworks - 32-100LT45

Racing Use Only, Not Legal for Road Use

$429.99

$483.00

You Save 11% ($53.01)

Starting at $39 /mo with
View full details

Gen V Gen 5 LT1 Top Loader Catch Can Kit 32-100LT45

This kit is designed to be a complete solution for your Gen V LT race engine when using factory style valve covers. Our in house made adapters connect directly to the factory style PCV ports on the valve covers and convert to 10AN male for easy connection and usage with our kit.

This kit works with Gen V LT4 an LT5 engines using factory valve covers!

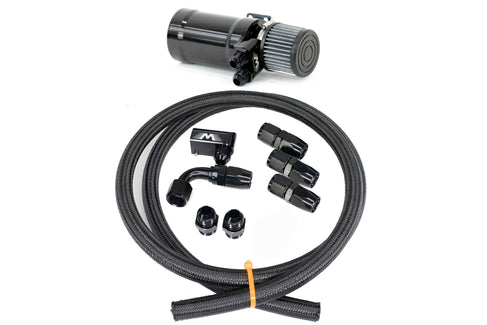

This Kit contains the following items:

  • (1) Billet Dual Port Catch Can
  • (2) 10 O-ring to 10 AN Adapter Fittings to screw into can
  • (3) Straight 10 AN Hose Ends (Fragola)
  • (1) 90° 10 AN Hose End (Fragola)
  • (1) Gen V LT Valve Cover Breather Attachment for Factory 5/8" Quick Release 10AN Straight Adapter Fitting
  • (1) Gen V LT Valve Cover Breather Attachment for Factory 5/8" Quick Release  10AN 90 degree
  • (6) Feet of 10 AN Black Braided Nylon Hose (Fragola)

Valve Cover Fittings

Motion Raceworks 5/8" quick release adapters easily convert factory valve cover fittings to AN.  These use an oring seal and a positive bolt lock to create a secure, swiveling, adapter to convert this factory connection to 10AN.

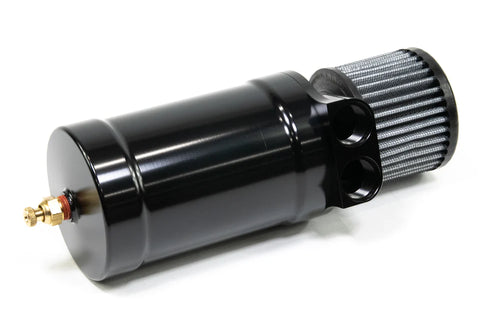

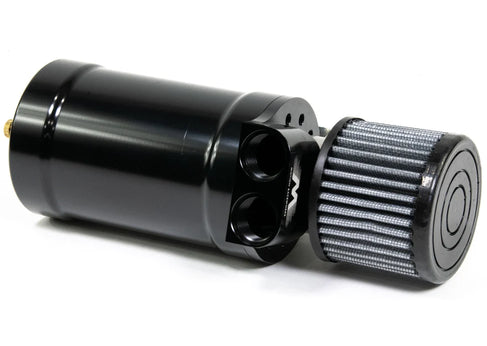

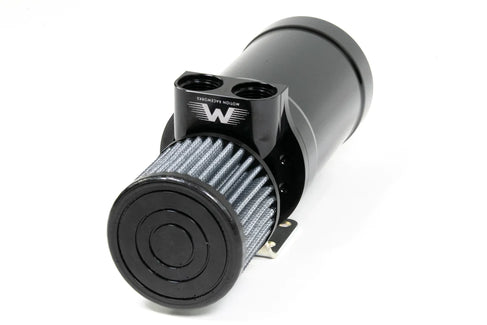

Top Loader Catch Can

This catch can is the results of years of building, refining, and optimizing N/A and Boosted combos. Featuring a dual internal baffling design, this can not only flows a high amount of air but keeps the filter and your engine bay dry from oil saturation due to poor can design.

One of the shortcomings of a typical can (including our own) is having fittings on opposing sides, and/or having the fittings clocked incorrectly.  This has been solved by having fittings coming out at 90°'s from the top of the can with a 180° clockable can by using our multiple bolt hole configuration top lid.  This means you can mount the can virtually anywhere in the engine bay and still have the fittings pointing in the correct orientation.

All cans come bright black anodized for a beautiful and durable finish.

Features include:

  • 100% Made in the USA
  • Billet Top/Bottom Hat and Barrel Design
  • 180° clockable mounting
  • Included zinc coated steel mount w/ hardware
  • Dual baffle internal design
  • High Flow Made in the USA Filter

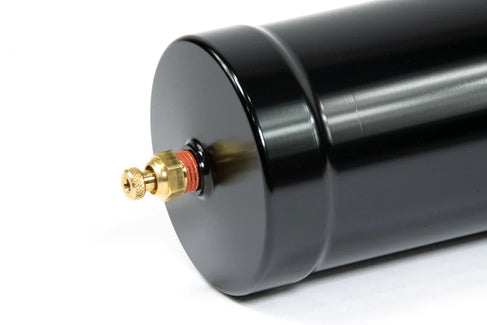

  • Comes with bottom plug and pet cock options
  • Dual -10 O-ring ( ORB ) outlets

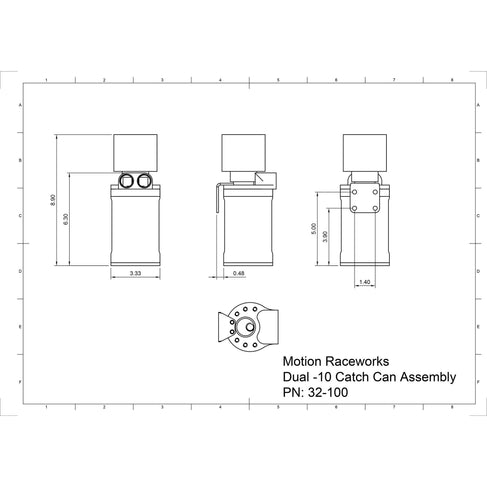

Reference Sizing Chart for Catch Can: Please note that catch can is "clockable" in mounting.

For more info on our Billet Top Loader Catch Can watch this video
