Fragola -10 AN 90° Hose End 229010-BL
Fragola - 229010-BL
Racing Use Only, Not Legal for Road Use
$22.99
Please select all options

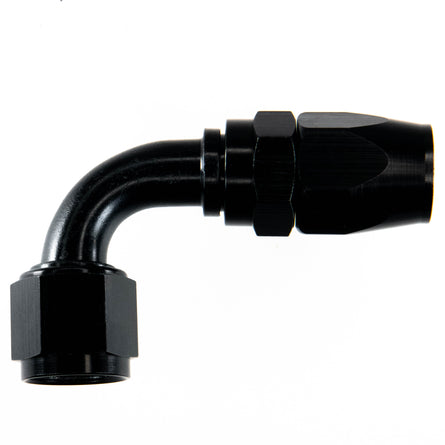

Fragola -10 AN 90° Hose End 229010-BL
The Series 2000 Pro Flow Hose Ends differ from the Series 3000 Hose Ends in the fact that they feature the “single nipple” method of hose attachment. With the “single nipple” style, the socket draws the hose over a long tapered single nipple. The sealing feature is the crush of the hose between the inside of the socket and the outside of the nipple. With this style of hose end, reusing it is a breeze. There is no sliver of cut hose to remove before reinstalling the hose end on a new piece of hose.
Made in the USA!
Features:
- 10AN 90 Degree Hose End
- Bright Dip Black Anodizing
- Hard 7000 series alloy aluminum construction allows for reuse and resists "twisting or snapping better than 6000 series fittings.
- Reusable design
- Use with Fuel (Methanol/Gasoline), Water, Coolant, Oil, Transmission Fluid, Air, CO2 and More.
Torque Specifications
Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat, and may cause leakage. Both the threads and the seat surface should have a drop or two of oil to smooth the tightening process. The maximum torque specifications are listed here. (An alternate method of tightening is to bring the nut to “hand-tight” and then rotate it another turn with the proper wrench.)
| Fitting Size | Max. Torque in Foot Pounds |
| 3 | 8.75 |
| 4 | 11.5 |
| 6 | 16.25 |
| 8 | 29 |
| 10 | 35 |
| 12 | 45 |
| 16 | 70 |
| 20 | 85 |
Size Chart
| A-N Thread | Pipe Thread | B-Nut Hex | ||||
| A-N Size | Tube Diameter | Thread Size (S.A.E.) | Pipe Thread | Threads Per Inch | A-N Size | Hex Diameter |
| -2 | 1/8″ | 5/16-24 | 1/16″ | 27 | ||
| -3 | 3/16″ | 3/8-24 | 1/8″ | 27 | #3 | 1/2″ |
| -4 | 1/4″ | 7/16-20 | 1/4″ | 18 | #4 | 9/16″ |
| -6 | 3/8″ | 9/16-18 | 3/8″ | 18 | #6 | 11/16″ |
| -8 | 1/2″ | 3/4-16 | 1/2″ | 14 | #8 | 7/8″ |
| -10 | 5/8″ | 7/8-14 | 3/4″ | 14 | #10 | 1″ |
| -12 | 3/4″ | 1 1/16-12 | 1″ | 11 | #12 | 1 1/4″ |
| -16 | 1″ | 1 5/16-12 | #16 | 1 1/2″ | ||
| -20 | 1 1/4″ | 1 5/8-12 | #20 | 1 7/8″ | ||
| -24 | 1 1/2″ | 1 7/8-12 | ||||
| -28 | 1 3/4″ | 2 1/4-12 | ||||
| -32 | 2″ | 2 1/2-12 | ||||
Learn how to Assemble AN Fittings and Hose By Watching this Video
